IP66 Wide Angles LED Flood Light For Outdoors
Description :
Ming Feng Lighting Co.,Ltd, a China manufacturer and supplier of
energy efficient luminaries for residential, industrial, and
commercial applications.
Our products include LED light bulbs ; LED panel lights ;LED tube
lights ; LED ceiling fixtures (ceiling spotlights, parabolic
troffers, lensed troffers, recessed lights, track lights); outdoor
lights (street lights, floodlights, wall lights, linear lights,
inground lights, garden lights, strip lights, spotlights);
industrial lighting solutions (LED high bay lights, high power
floodlights, explosion roof lamps); CFL lamps and LED drivers.
Specification :
MF-L150W
Floodlight Tehnical Data sheet.pdf
| Model: | MFL75W-110 | MFL75W-25 | MFL75W-60 | MFL75W-90 | MFL75W-130X60 |
| Light Source: | Osram/Lumileds 3030 2D | Osram/Lumileds 5050 | Osram/Lumileds 5050 | Osram/Lumileds 5050 | Osram/Lumileds 5050 |
| Luminous flux: | 9380LM | 8300lm | 8700lm | 8900lm | 9525lm |
| Beam Angle: | 110° | 25° | 60° | 90° | 130°x60° |
| Optical Cover: | Clear/Foggy Glass | PC lens | PC lens | PC lens | PC lens |
| Input Voltage : | 100-240VAC 50/60Hz | IP Class : | IP65 |
| LED power : | 68W | Housing: | Die-casting Aluminum |
| System Power: | 76W | Working Temperature : | -20℃ to +50℃ |
| Power Factor: | >0.95 | Working Humidity : | 10% - 90% |
| System Efficiency: | 110lm/w to 127lm/w | Power cable: | 3x1.0mm2H05RN-F |
| Color Temperature : | 3000K/4000K/5700K | Net weight: | 3.2KG(glass) | 3.1kg(PC) |
| CRI: | >80(3030 LEDs) >70(5050 LEDs) | Dimension of Outer Carton: | 79cm x 43.5cm x 37 cm (4pcs/carton) |

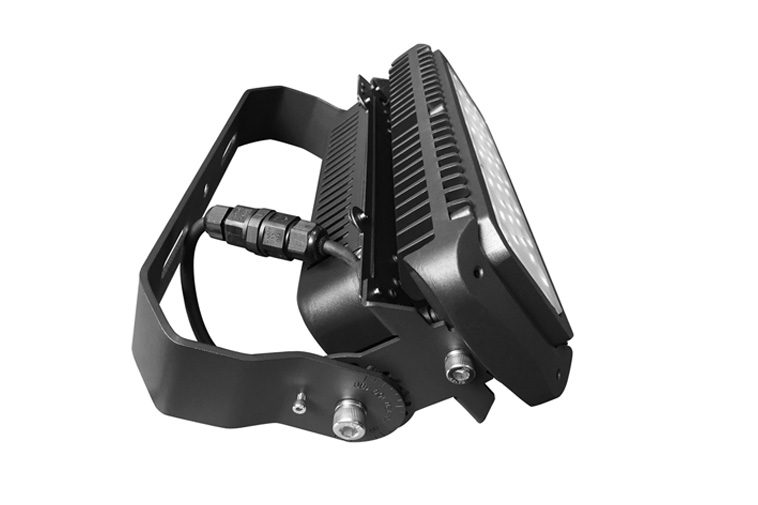

Product Images :
Advantage :
1. Wide beam angles including 110°,25°,60°, 90°,130°x60°
Asymmetric. If you want others, we can customize it.
2. IP65 Meanwell ELG drivers: TaiWan MeanWell LED Drivers, wide
AC90V~305V, PF>0.98, low THD<9%.Built-in Mean well drivers,
make the lamp safer for operation, it can reach IP65. Waterproof.
Drivers are available.
Waterproof Connectors
3. Die-casting Aluminum housing with AkzoNobel powder coating.
4. Module angle adjustable to project aimed lighting area
accurately. U shape bracket with angle adjutable of 0°~180°,Each
modular can be angle adjustable as well, which can enable the lamp
projects to the illumination needed area.
5. Certificated: CE, TUV, RoHS,ETL,CB,SAA, FCC, DLC
6. 5 years warranty. Life-span is 50000 hours to 100000 hours.

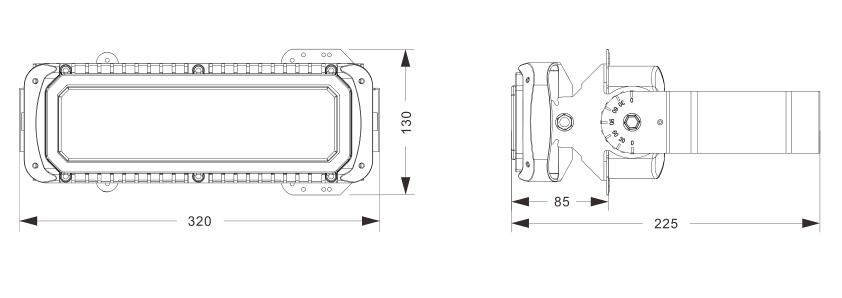

Dimension :
Luminous Intensity Distribution Diagram :
Applications :
Suitable for sport field,warehouse,gymnasium,workshop,Gas
stations,Toll stations, parking area, etc.
