Strong Aluminum IP66 Stadium Lighting LED Flood lights Industrial
170lm/w High Power
Description:
MingFeng Lighting Company has great professional on producing LED
flood lights, here we would like to recommend our MF-WSD series
flood lights. It can be led stadium lights, area lights and high
mast lights.
We can produce it in 230W,315W,460W,580W,720W available.
Different beam angle 30 degree, 60 degree, 15 degree, Type Ⅱ Short
Type Ⅱ Ⅲ Ⅳ Medium
Working Voltage is 100-277Vac.
Lamp luminous Efficiency is 130LM/W to 170LM/W
Led light Source is Lumileds 5050 chip; Inventronics Driver.
Our High Mast Lighting is specially developed for new and reformed
high mast, using latest high-efficiency LED technology,
MingFeng Lighting provides full series lighting solutions, from
simple cases to complex illumination applications.
Technical data :
| Product Name : | High Mast Light / LED stadium lights / LED flood light |
| Model : | MF-230WSD | MF-315WSD | MF-460WSD | MF-580WSD | MF-720WSD |
| Power : | 230W | 315W | 460W | 580W | 720W |
| Input Voltage : | AC100-277V 50/60Hz |
| IP Rating : | IP66 |
Luminous efficacy : | 140LM/W , 150LM/W, 170LM/W |
| CCT : | 27K-30K/40K-50K/57K-65K |
| CRI: | Ra70+/Ra80+ |
| Body color: | Silver |
| Beam Angle : | 15°/ 30°/60°/ Type Ⅱ Short / Type II Medium / Type III Medium /
Type IV Medium |
| Fixture Material: | die-cast Aluminum |
| Power Supply: | Inventronics |
| LED Type : | Seoul Y22 or Lumileds 5050 |
| Operating Temperature: | -30℃ to 45℃ |
| Storage Temperature: | -40℃ to 60℃ |
| Lifespan : | >100000hours |
| System Efficiency : | >90% |
| Warranty: | 5 years |
Advantage of LED Stadium lights Industrial :
A : Symmetrical narrow and wide distributions to maximize system
effcacy and quality of light for multiple pole spacings.
B : Long system life with driver life exceeding 100,000 hours and LED
life of L82 @100,000 hours minimize maintenance costs.
C : Robust mechanical design with IP66 optics, 3G vibration rating,
4-bolt mounting, powder painting finish, passed 1000~5000Hrs
salt spray test.
Product Details for LED stadium light / LED flood light industrial:
Every single module is placed in a complete ventilated aluminum
housing for maximum thermal transmission.
The heat sink is made up by two pieces of die-casting aluminum for
thermal convection, there are two screw bolts
and buckles to fix the light when assembling, and can be opened in
115 degrees.
LED Flood lights Industrial Installation TypeS:
GLASS/PC LENS :
Glass/PC lens is able to ensure the luminous effect, also keep dust
and dirt away, level of protection is IP66.
INSTALLATION METHOD :
Three mounting options for time saving
installation.
Fit for round Pole within 42-60mm.
Applications :

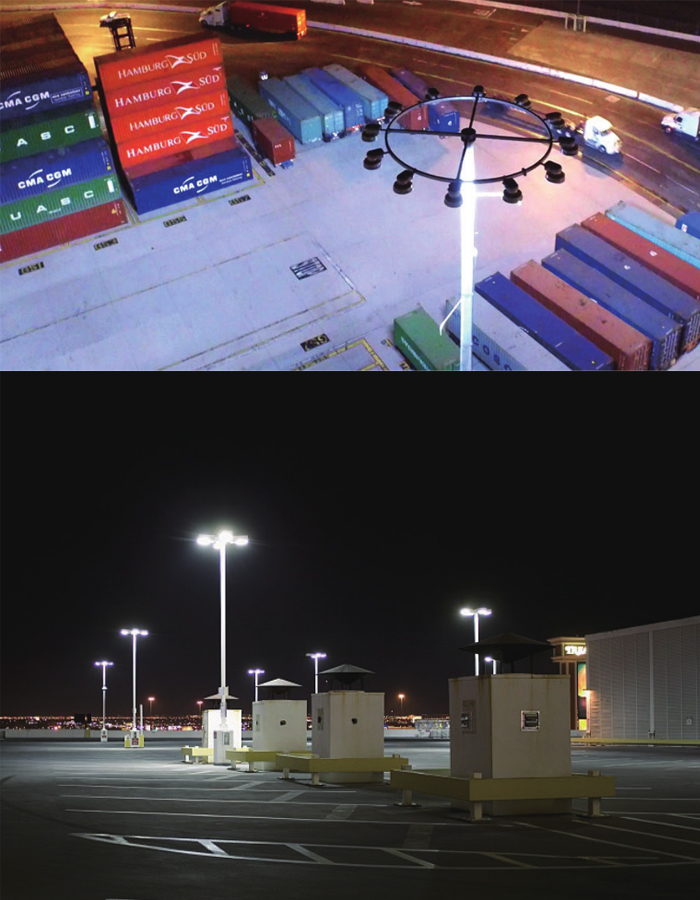

Port Container Facilities, Highways, Interchanges,Rail
Yards,Correctional Facilities,Large Area Industrial,Military
Installations
Airports,Truck stops,Toll Plazas......
