IK08 Waterproof Streamlined LED Street Light

Technical Parameter:

Product details:

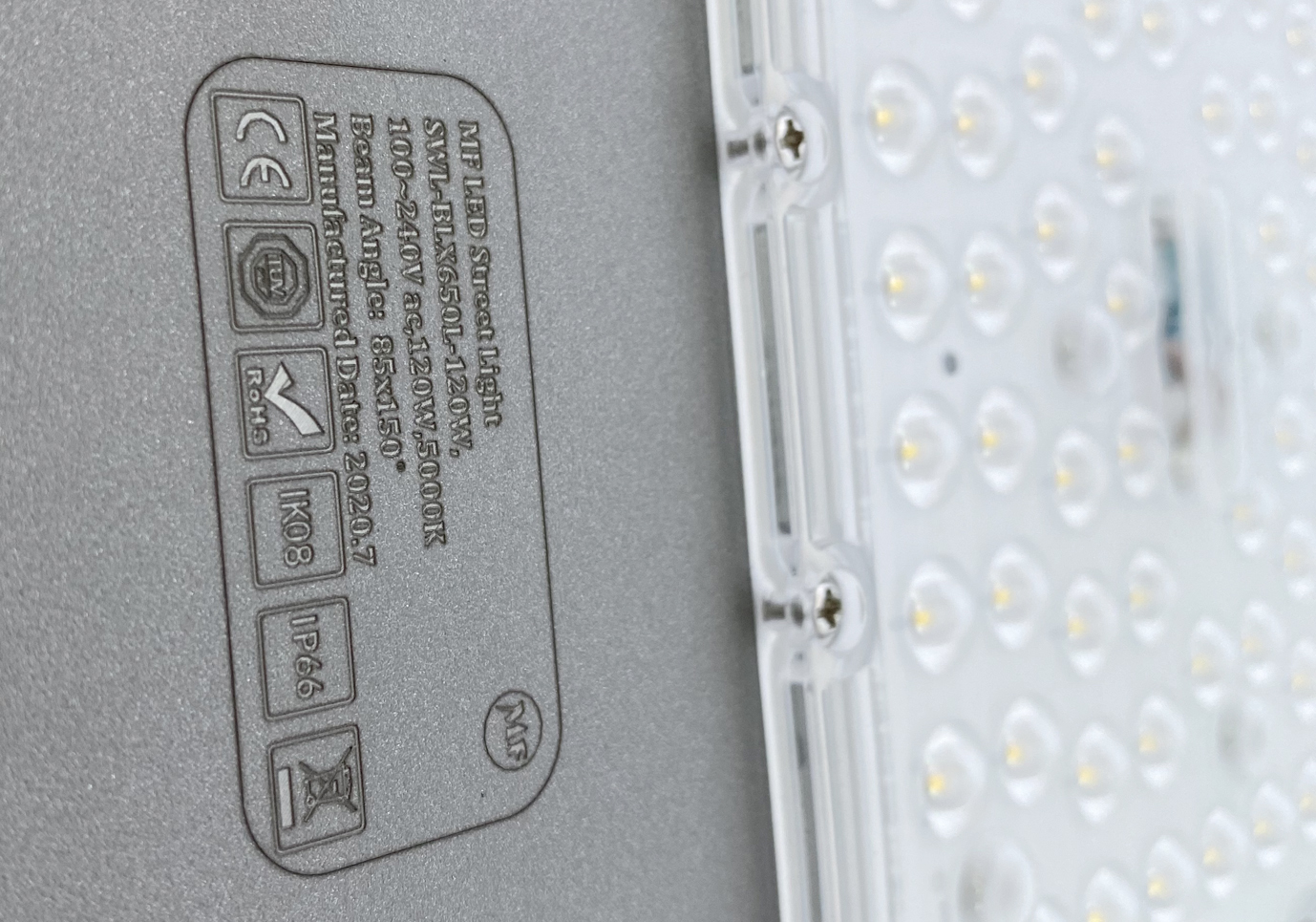

Built-in SOSEN driver Laser trademark(OEM)

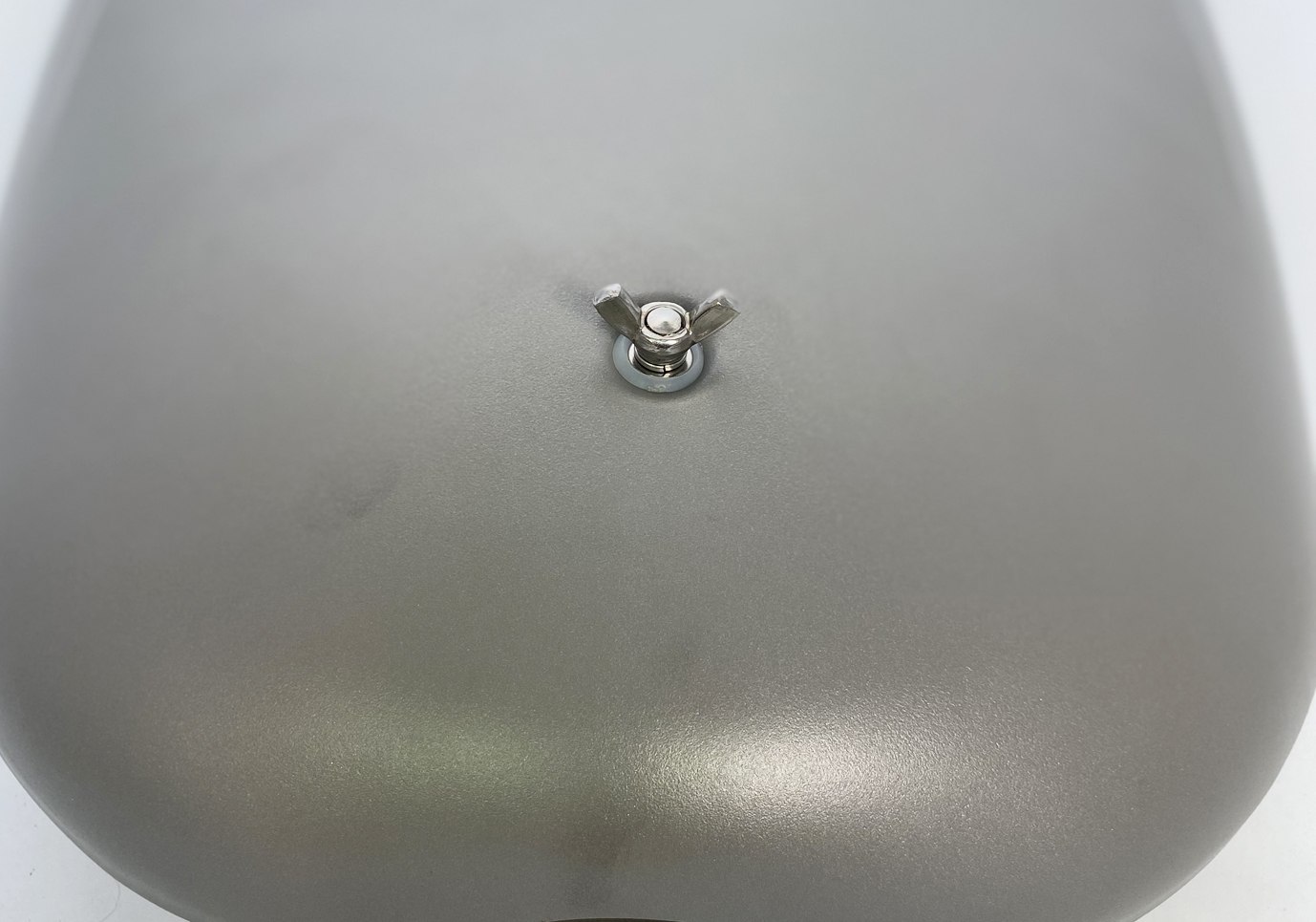

Butterfly screw safe and convenient Lumileds3030 chips and PC len

IK08 LED Street light Special Characteristic:

1. Distribution Curve Flux

85*150°

2.Product Features:

a.Luminous efficiency up to 130lm/w;

b.Series and Parallel circuit board design, improves the stability of the light;

c.Use high quanlity A1070 aluminum plates as the radiator, with excellent heat dissipation and heat conduction;

d.Use transparent optical PC lens of high light transmittance 92%, with uniform and soft light output;

e.Using constant current LED driver to improve the stability as well as the efficiency of the lamps;

f.Panel beating structure design and streamline appearance;

g.Lampshade can be opened manually for easy maintain;

h.Easy installation, reduce the working time at nigh altitudes;

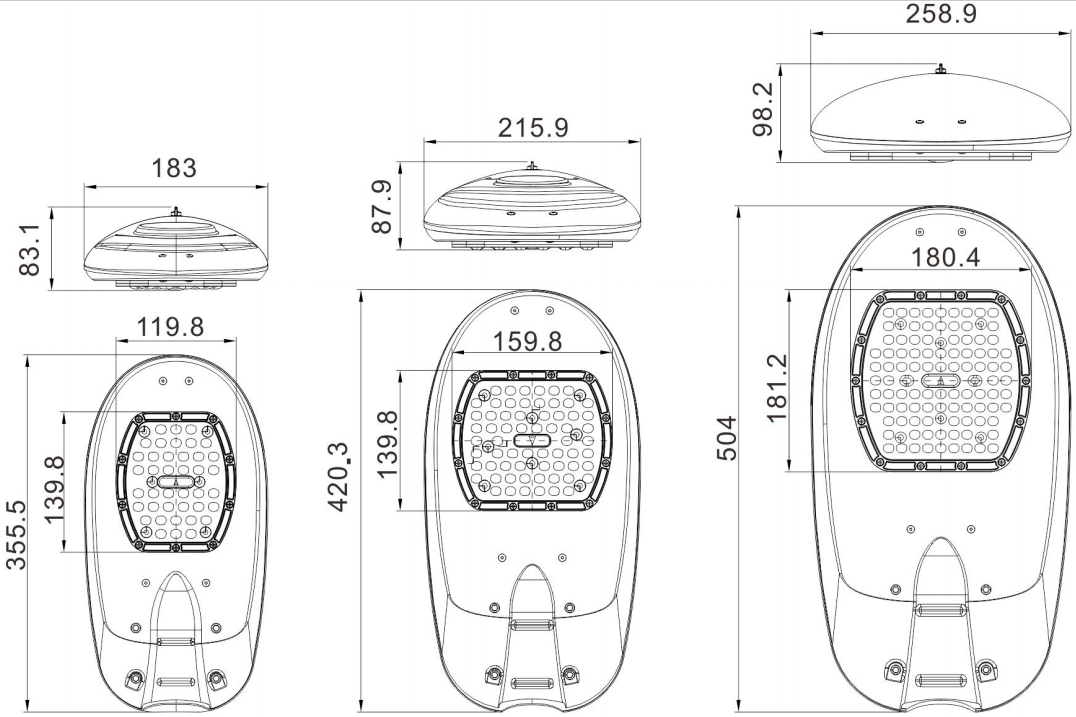

IK08 LED Street light Dimensions:

40W Size 60W Size 90W Size

120W Size 150/200W Size

Installation Method :

1.Turn off the Electric protection switch.

2.Loosen the butterfly screw (see as figure1) and lift the upper cover(see as figure 2).

3.Lift the supporting steel wire(see as figure 2) and buckle it into the clip hook of supporting fixed.Plate on the upper cover to

keep the upper (see as figure 3).

4.Connect the wire, according to figure 4:

AC Input: L (Brown/Red) - Live, N (Blue/Black) - Zero, (Yellow Green) - Ground.

DC Input: "+" (Brown/Red) - Positive, "-" (Brown/Red) - Negative.

.

5.Put the lamp on the lamp pole and fasten the 4pcs inner screws, as shown in figure 5.

6.Pull the supportign steel wire out of the clio hook(see as figure 6) and press it flat on the lower cover, then close the

upper cover and tighten the butterfly screws(see as figure 6-7).

Package :

Description:
Ming Feng Lighting Co., Ltd developed a new kind of UFO IP65 Zoomable LED high bay light, can Change different beam angle lens as 60° to 90° to105° , This beam angle adjustlabe industtrial high bay light apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required. With ADC12 Aluminum alloymaterials radiator, with air duct design principle of both inside and outside ventilation, and better heat dissipation performance. Unique design for Meanwell driver, to keep low temperature when operating. Beautiful appearance, own high light efficiency, can achieve more than155LM / Watt. Power ,40W,60W,90W, 120W, 200W for your choice. Input voltage 100-277Vac, 200-240Vac suitable for both USA and EU market.
