IP66 LED Stadium Lights, 170LM/W Suit for High Mast Roadway & Area Lighting, 210W to 750W

750W IP66 High Mast LED Stadium Lighting Fixtures

Description:

Combined by 3 (4/5/6/7 ) LED modules, and equipped with glass/PC lens for each module, our High Mast Light is able to converge stray light in a most efficient way. Every single module is placed in a complete ventilated aluminum housing for maximum thermal transmission. The heat sink is made up by two pieces of die-casting aluminum for thermal convection, there are two screw bolts and buckles to fix the light when assembling, and can be opened in 115 degrees.

IP66 LED Stadium Lights​Functions and advantages:

a).Lumen packages ranging from 29400 to 97500 provide one-for-one replacement of up to 1500 watt HPS.

b).Prismatic glass optics provide high application effcacy, uniformity, and glare control.

c).A choice of multiple asymmetric lighting distributions for both median mount and offset pole mounting confgurations.

d).Symmetrical narrow and wide distributions to maximize system effcacy and quality of light for multiple pole spacings.

e). Long system life with driver life exceeding 100,000 hours and LED life of L82 @100,000 hours minimize maintenance costs.

f).Robust mechanical design with IP66 optics, 3G vibration rating, 4-bolt mounting, powder painting finish, passed 1000~5000Hrs salt spray test.

Specifications:

Electrical Data:

Model No: MF-HMXW (X=Power, e:g, MF-HM210W)
Input voltage: AC100-277V/AC277-480V,50/60Hz
Power(watt): 210W/240W/320W/475W/570W/631W/750W
Power Factor :0.90
Power Efficiency: >90%
Total Harmonic Distortion :<15%

Optical Data:

LED Type :OSRAM
Efficiency: 140lm/W
Luminous Flux :29400/33600/44800/66500/79800/85000/97500Lm
CCT :3000K/4000K/5000K/5700K
CRI :>70Ra
System Efficiency :>90%
Beam Angle :Optional
EPA :1.637ft2

Others:

IP: IP66
Lens Material: PC/Glass
Heat Radiator: die-cast aluminum
Net weight :24.8kg(750W)

ACCESSORIES (OPTIONAL):

1.Robust extreme surge protection rating of 20kA/10kA.

2.Control options include 0-10V dimming, 3/5/7-pin photocell control, enabled.

3.Field-adjustable output allows for zone control, accelerating your return on investment.

IP66 LED Stadium Lights Features:

A: The luminaire uses a die-casting heat sink to convect/conduce heat, quickly dissipate heat, and extend the life of the LED lamp

B: Ventilation convection housing

C: Rotation lamp body, adjustable light placement

D: Glass/PC lens is able to ensure the luminous effect, also keep dust and dirt away, level of protection is IP66.

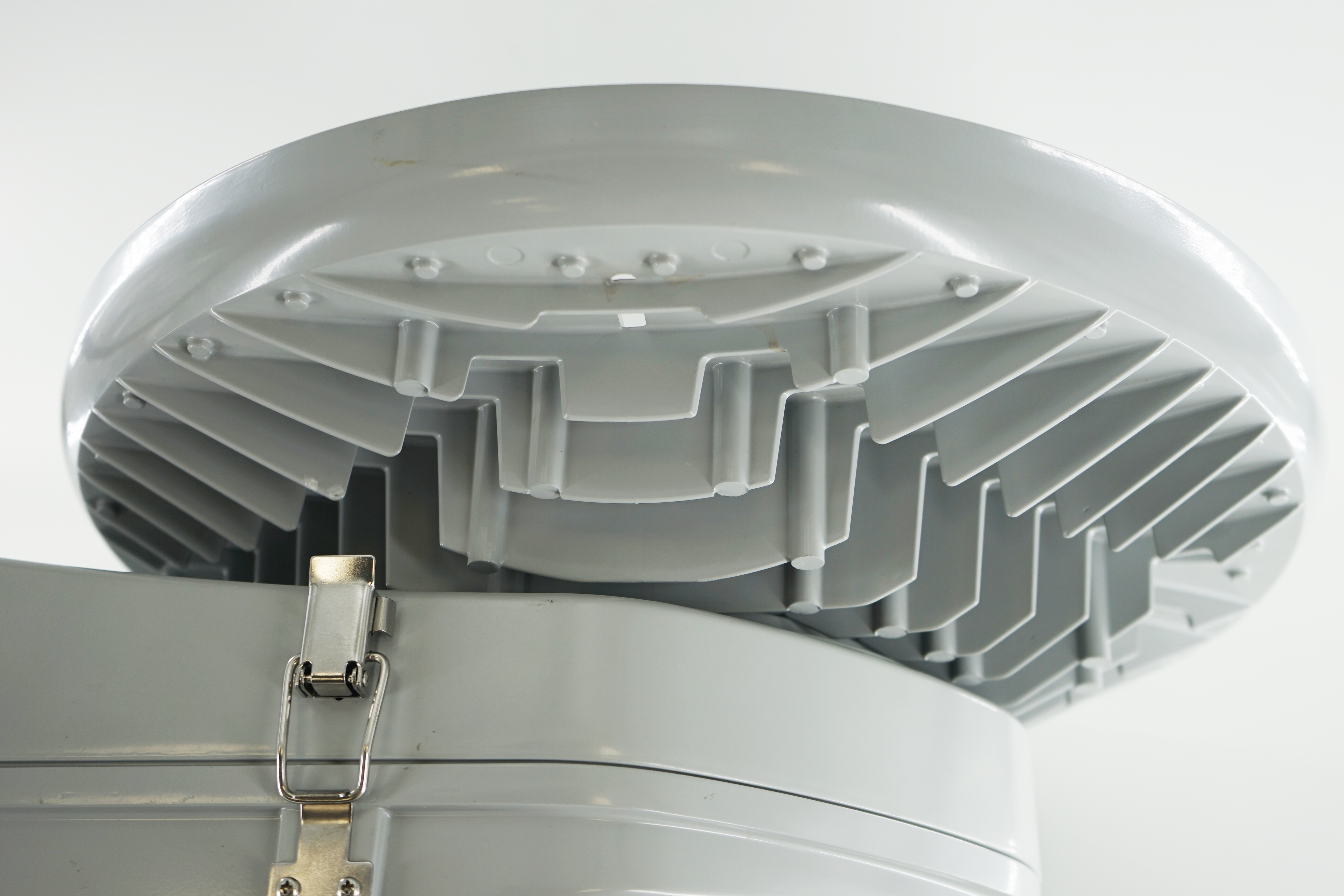

die-casting heat sink

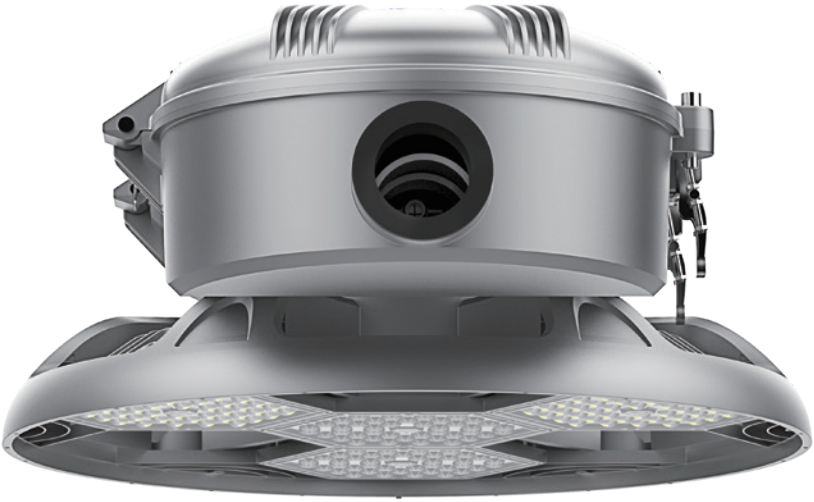

Rotation lamp body

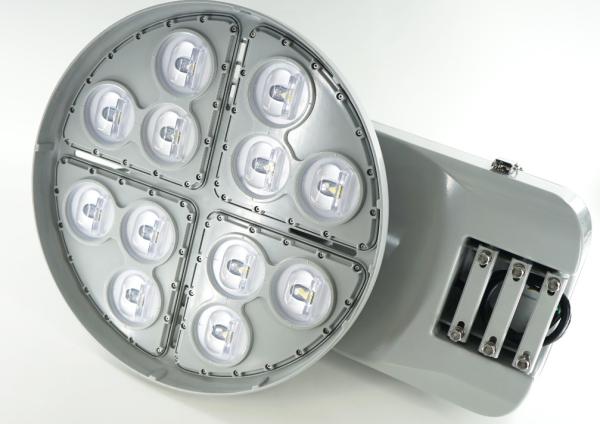

Glass/PC lens & level of protection is IP66

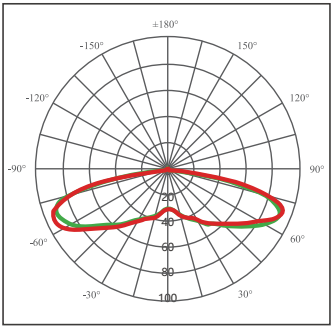

Photometric Diagrams:

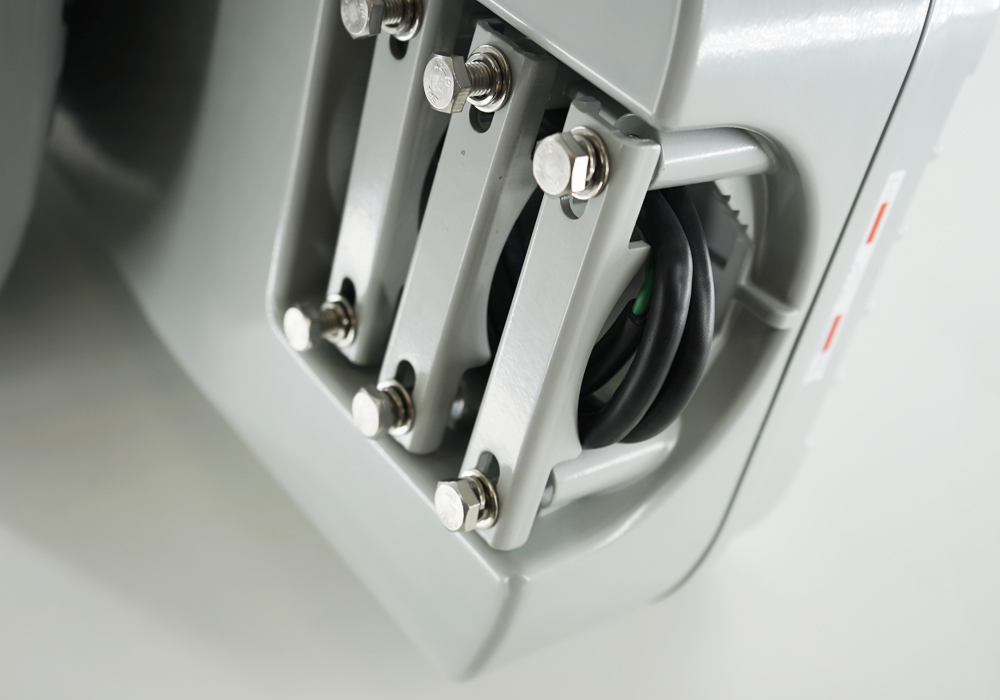

Installation Method:

Three mounting options for time saving installation.Fit for round Pole within 42-60mm.

A B C

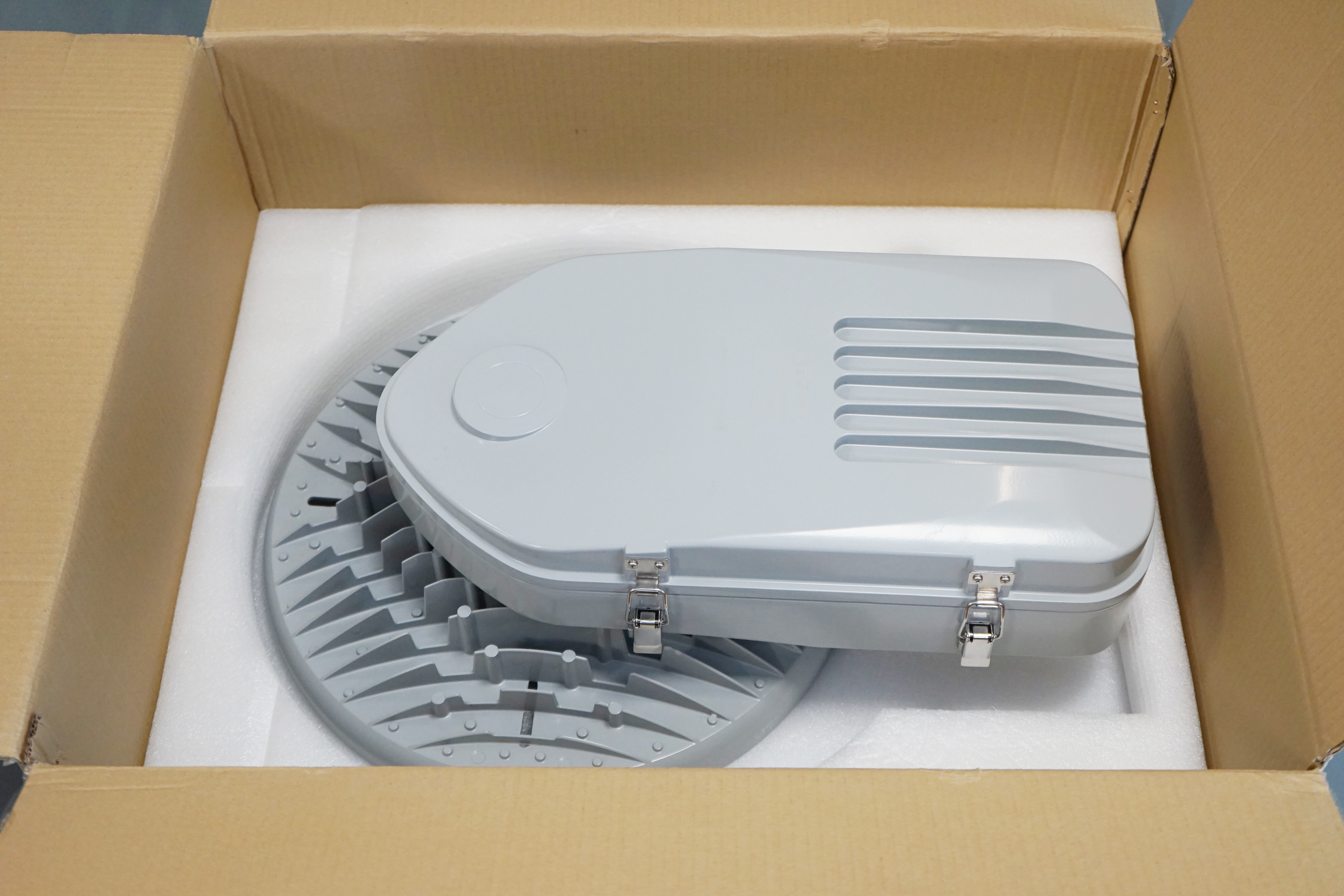

Package:

1 2 3

Applications:

Port Container Facilities / Highways / Interchanges / Rail Yards / Correctional Facilities / Large Area Industrial / Military Installations / Airports / Truck stops / Toll Plazas
