120W INDOOR IK10 TWO SIDE COVER K3 LINEAR LED HIGH BAY
MF 120W Indoor linear high bay use 175lm/w high lumen efficacy LED
chips, and Meanwell driver. Meanwhile we have diffirent power for
your reference:30w,60w,90w,120w.
Quick Detail:
Power : 30w,60w,90w,120w
Luminous Efficacy: 175lm/w
Lumen Output : 21000lm
LED Quantity: 196pcs
Dimension : 1183*100*25mm
CCT : 3000K, 4000K, 5000K, 6000K(Custom Option)
CRI : >80Ra
System Efficiency : ≥90%
Input Voltage : AC 100-277V/347V/480V
Power Frequency : 50-60Hz
Output Voltage : DC36-48V
Power Efficiency : >92%
Dimmable : Yes(Optional)
IP Rating : IP44
Lifespan : 100,000+hours
Storage Temperature : -20°~65℃
Operating Temperature : -20°~55℃
Certification : UL, DLC, Premium, SAA, TUV, VEET, CB
Color of housing : White(customized)
Description:
*Sandblasting oxidation treatment on heat sink makes fixture body
with better abrasion performance and corrosion resistance.
*Frosted Lens design with soft light Various beam angle of
30°/60°/90° options, and Asymmetric 25°/30°.
*PC transparent/ frosted cover, the overall appearance looks
lighter and thinner.
*High lumen 175lm/w 3030 SMD LED Chip
*Power by Meanwell driver
Specifications:
Model No | MF-HB120W-K3 |
Input voltage | AC 100-277V/347V/480V |
Power(watt) | 120W |
Dimension | 1183*100*25mm |
Color temperature | 3000K /4000K/ 5500K/6000K |
LED Chip | SMD 3030 |
IP Rating | IP44 |
Housing Color | White |
Luminous Flux (lm) | 21000lm |
CRI(Ra) | 80 |
Lifespan | ≥100000hrs |
Beam Angle | 30°/60°/90° |
Material | Aluminum Alloy + PC |
Operating Temperature | -200C ~500C |
Dimmable | Y |
Certificate | UL, DLC, Premium, SAA, TUV, VEET, CB |
Warranty Period | 5 years |
Competitive Advantage:
1.High lumen efficacy.
2. Unique design makes it different from existing LED linear.
3. 30/30/90/ degree above. It can replace 60W traditional
incandescent bulb directly. Save at least 80% energy.
4. Long lifetime 100000Hrs. (Calculated as 8 hours per day, average
lifespan 34 years above.)
6. No IR-and UV radiation.
Detail Pictures:

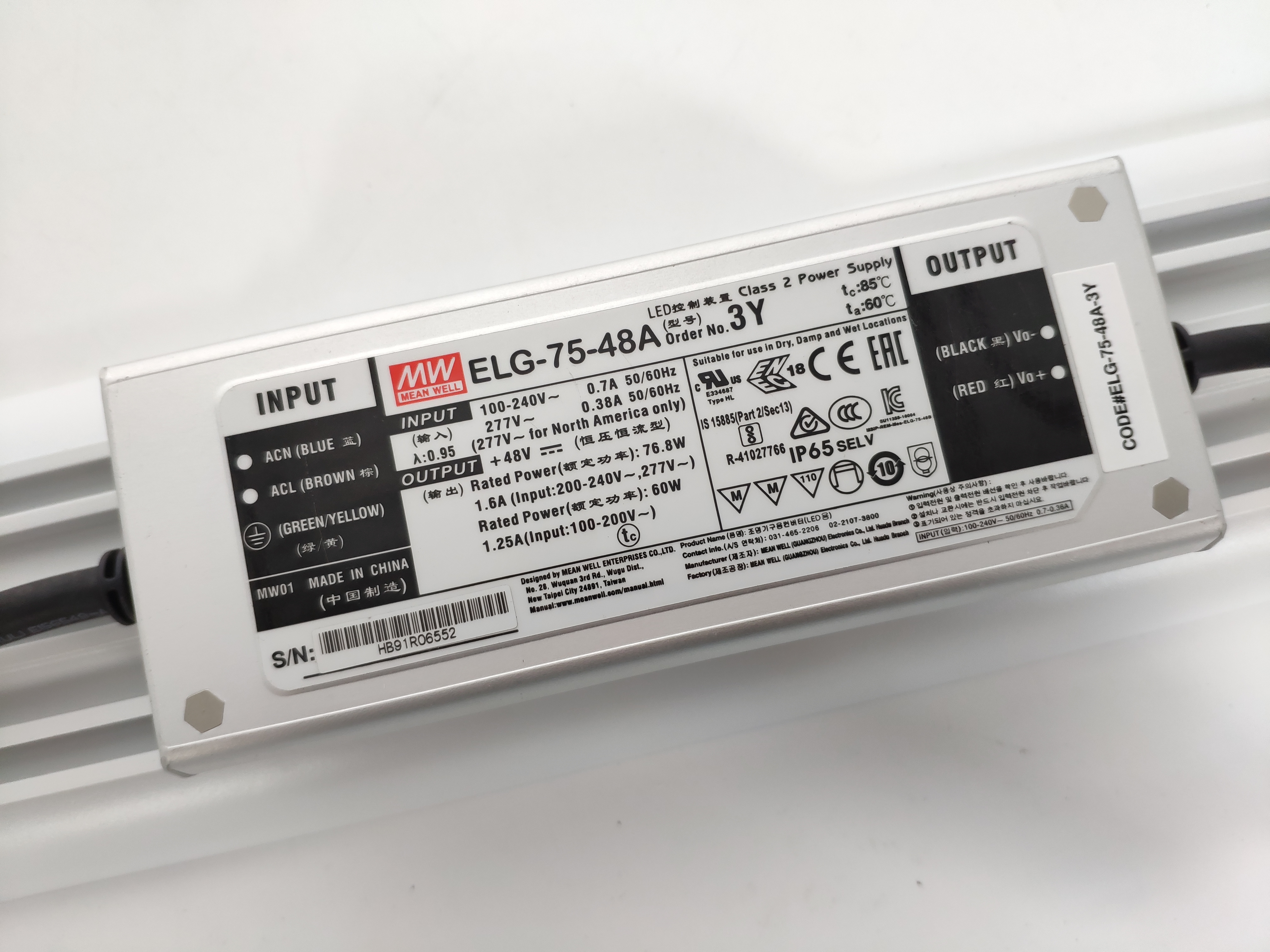

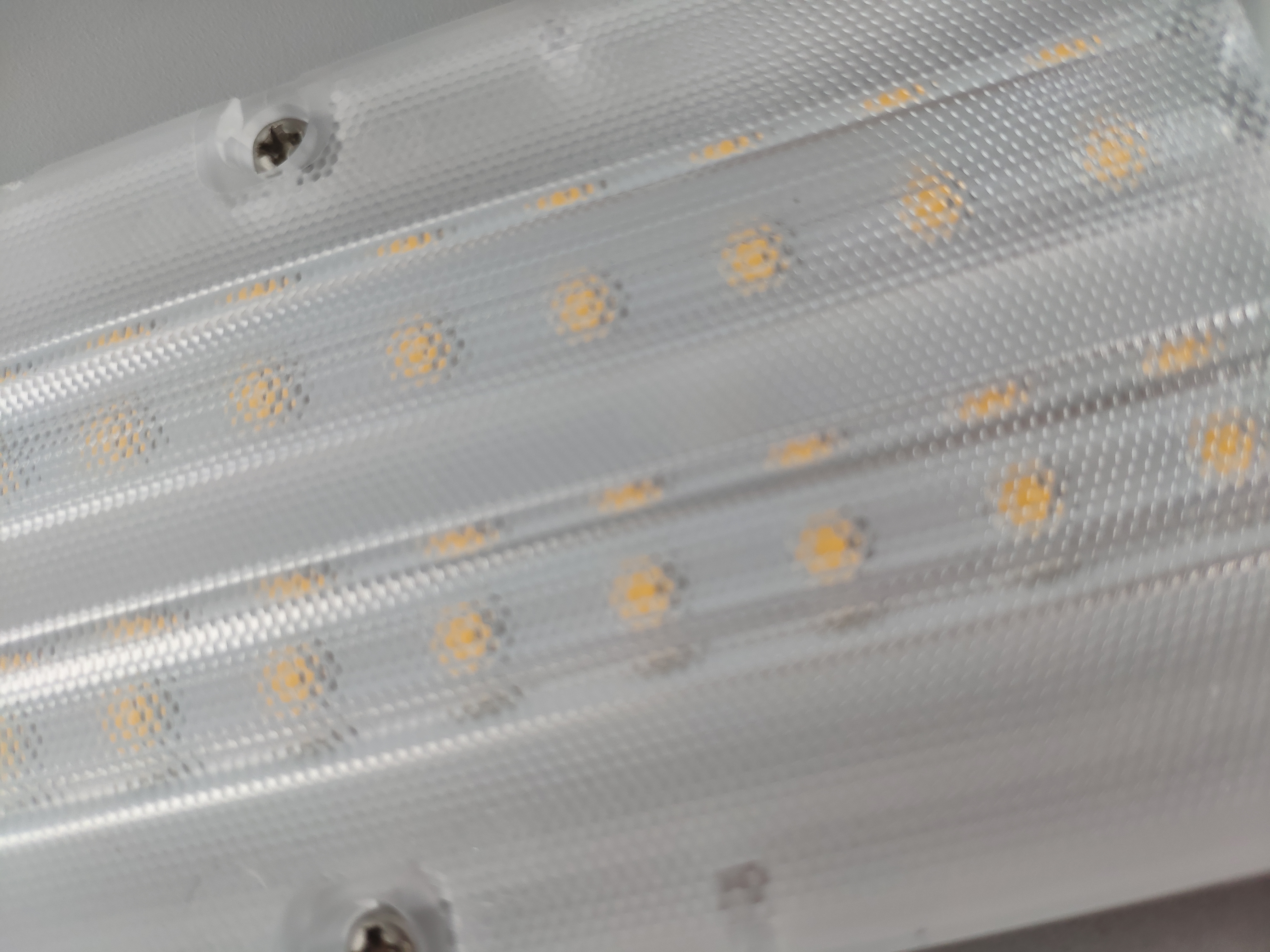

MeanWell Driver Frosted Len
Installation and Technical Data:
Beam angle:
Package:
Model NO. | N.W/pcs | G.W/pcs | QTY/CTN | N.W/CTN | G.W/CTN | Size/CTN |
MF-HB120W-K3
| 2.6kg | 3.2kg | 1pcs | 2.8kg | 3.45kg | 124*15*0.8cm |

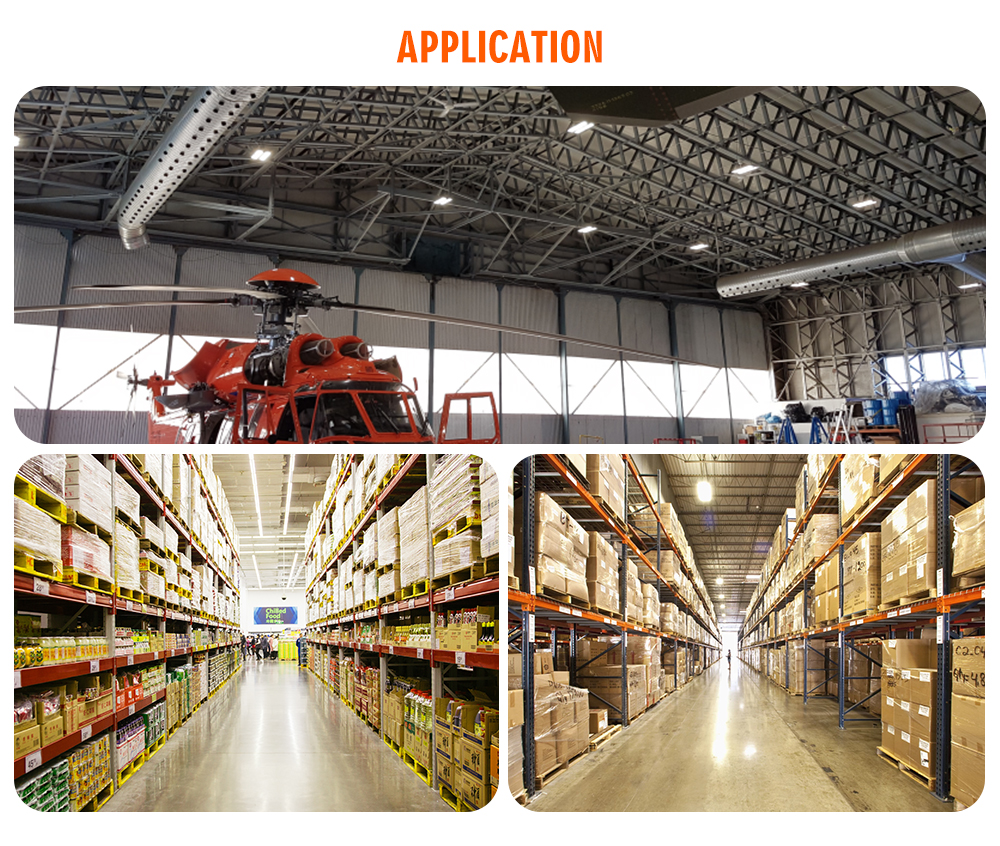

Applications:
Widely use in Factory, Workshop, Warehouse, Logistics Center,
Exhibition Hall, Stadium, Gas Station, Supermarket and etc.
Q&A:
What are Linear High Bay lights?
Linear high bay light fixtures are used to brighten big indoor
areas with high ceilings (normally 20 to 45 feet from the floor).
The large space between ceiling and floor necessitates that a
linear high bay light provide a high lumen output and the light
needs to be focused down and out from the fixture. Linear high bays
tend to be rectangular in shape as opposed to other types of high
bays that are round or “bell” shaped. They can be mounted directly
to the ceiling or hung with chains or cables.
