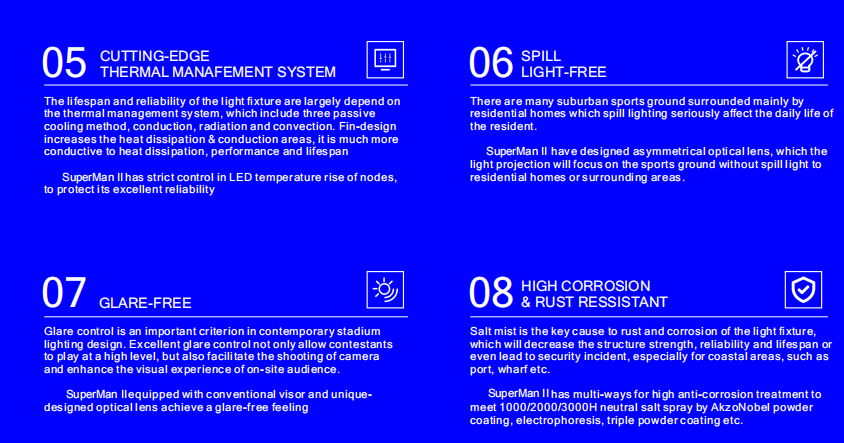

EXCELLENT HEAT DISSIPATION AND LIFE-SPAN ASSURED
The lifespan and reliability of LED fixtures largelydepend on thermal management system whichincludes three passive coolingmethods,conduction,radiation,andconvection.Die-casting module design increasesheat dissipation areas and conduction areas.lt is much more conductive to heatdissipation,performance,and lifespan.

Conduction

Thermal conduction refers to a type of heat dissipation method in which the heat of the body is directly transferred to the lower temperature object in contact with it.
Radiation
Radiation is a heat transfer method in which the heat source is radiated in a straightline in all directions, and at the sametimeabsorbs the energy back relected by the surrounding objects.The radiation ability of an object(ie, the energy radiated outwardfrom a unit surface per unit time) increases rapidly with increasing temperature.Superllan series achieves better heat dissipationcapacitly by continuously optimizing and increasing the heat dissipation areas.LED heat is transfered to the heat sink throughthermally conductive silicone.

Convection
thermal convection means that the alr temperature rises due to the radiation and the volume expands and rises The cold air isthen replenished and the heat dissipation surface exchanges heat with the newly moved cooler air.thus continuously takingaway the heat.As for SuperMan series,each module has an extended fin desian to achieve convection.

Lighting infrastructure is a strategic resource in modern stadium. LED lighting not just simply means energy saving, environmental protection, reducing installation job, and reducing subsequent maintenance cost. More importantly, it offers new opportunities for the stadium. Different lighting demand can be realized through intelligent control, making the stadium being a multi-functional venue which is capable of holding large scale events, such as concert.

1. Fan enthusiasm is the core part of a contest.Fan's emotion and atmosphere can be stimulated by pre-game and post-game entertainment activities,which will increase time that fans stay in the stadium.

2. Contestants need comfortable light free from glare to reduce reaction time and to avoid mistakes,so that they will surpass at an exceeding level. In addition, for sports such as football,both the vertical and horizontal directions must ensure perfect illumination.
3. LEDs with TLCI>90 isadopted,which can meet the HDcamera's requirement to broadcast.DC dimming program is used to achieve flicker-free effectand slow motion replay demand.
4. Lighting inside the stadium is the central part of modern stadium lighting. series can effectively reduce glare through muttiple anti-glare design,allowing player to have upgrading
5. Besides lighting inside the stadium,lighting outside the stadium isrequired to improve as well.MingFengLighting has corresponding product series for selections
6. Large stadium can accommodatetens of thousands of spectators.MingFengLighting is available for floodlight ,sports light, tunnel light,high mast products.

Product parameters

SuperMan II Family Plan A 150lm/w

Model	MF-QCD-H250W	MF-QCD-H500W	MF-QCD-H750W	MF-QCD-H1000W	MF-QCD-H1250W
Light Source	440*PCT2835/126*SMD3737	880*PCT2835/252*SMD3737	1320*PCT2835/378*SMD3737	1760*PCT2835/504*SMD3737	2200*PCT2835/563*SMD3737
LED Brand	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM
Driver Brand	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN
Rated Power (W)	250W	500W	750W	960W	1200W
Input Voltage (V)	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz
Output Voltage(V)	48	48	48	48	48
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
THD	<10	<10	<10	<10	<10
Luminous Flux (lm)	36,000 ±5%	72,000 ±5%	108,000 ±5%	144,000 ±5%	180,000 ±5%
CCT (K)	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700
CRI (Ra)	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90
Beam Angle	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°
IP Class	IP66	IP66	IP66	IP66	IP66
IK Class	IK08/IK10	IK08/IK10	IK08/IK10	IK08/IK10	IK08/IK10
Outer Carton (mm)	630*330*230	630*520*230	630*680*230	630*840*230	630*1000*230

​SuperMan II Family Plan B 170lm/w​

Model	MF-QCD-H250W	MF-QCD-H500W	MF-QCD-H750W	MF-QCD-H1000W	MF-QCD-H1250W
Light Source	440*PCT2835/126*SMD3737	880*PCT2835/252*SMD3737	1320*PCT2835/378*SMD3737	1760*PCT2835/504*SMD3737	2200*PCT2835/563*SMD3737
LED Brand	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM
Driver Brand	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN
Rated Power (W)	250W	500W	750W	960W	1200W
Input Voltage (V)	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz
Output Voltage(V)	48	48	48	48	48
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
THD	<10	<10	<10	<10	<10
Luminous Flux (lm)	40800 ±5%	81600 ±5%	122400 ±5%	163200 ±5%	204,000 ±5%
CCT (K)	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700
CRI (Ra)	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90
Beam Angle	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°
IP Class	IP66	IP66	IP66	IP66	IP66
IK Class	IK08/IK10	IK08/IK10	IK08/IK10	IK08/IK10	IK08/IK10
Outer Carton (mm)	630*330*230	630*520*230	630*680*230	630*840*230	630*1000*230

SuperMan II Family Plan C 150lm/w

Model	MF-QCD-H300W	MF-QCD-H600W	MF-QCD-H900W	MF-QCD-H1200W	MF-QCD-H1500W
Light Source	440*PCT2835/126*SMD3737	880*PCT2835/252*SMD3737	1320*PCT2835/378*SMD3737	1760*PCT2835/504*SMD3737	2200*PCT2835/563*SMD3737
LED Brand	Lumi-leds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM	Lum-ileds/OS-RAM
Driver Brand	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN	MW/SOSEN
Rated Power (W)	300W	600W	900W	1200W	1500W
Input Voltage (V)	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz	100-305Vac 50/60Hz
Output Voltage(V)	48	48	48	48	48
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
THD	<10	<10	<10	<10	<10
Luminous Flux (lm)	45000 ±5%	90000 ±5%	135000 ±5%	180000 ±5%	225,000 ±5%
CCT (K)	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700	3000/4000/5000/5700
CRI (Ra)	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90	>70/>80/>90
Beam Angle	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°	10°/25°/45°/60°/90°/65°*25°
IP Class	IP66	IP66	IP66	IP66	IP66
IK Class	IK08/IK10	IK08/IK10	IK08/IK10	IK08/IK10	IK08/IK10
Outer Carton (mm)	630*330*230	630*520*230	630*680*230	630*840*230	630*1000*230

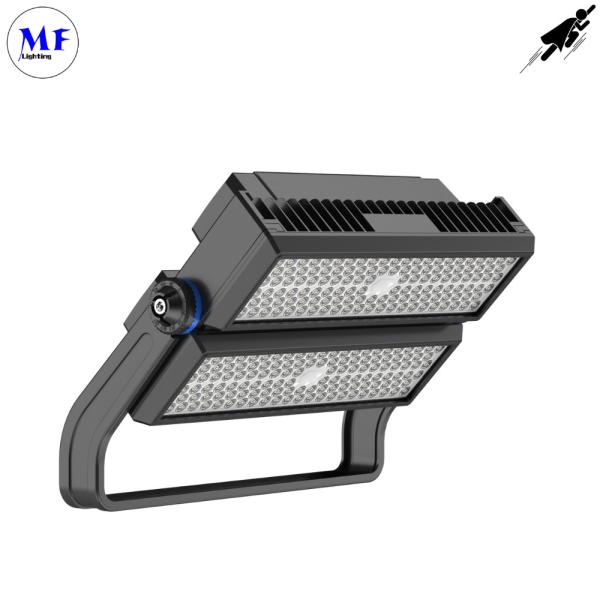

The features of this high mast stadium light, such as modular design, glare control, high corrosion resistance, flicker-free technology, and slow motion replay capability, make it versatile for a wide range of applications requiring high-performance lighting solutions.
