High Power Stadium Lighting LED Flood Light 250W-1500W IK10 IP66
Outdoor Waterproof For Sport Field
1.All-In-One Design to Perform:The new generation in LED sports &
area lighting, create an unbelievable combination of world-class
performance, energy saving, cutting-edge optical & thermal
management technology and ongoing low maintenance cost in one sleek
package solution
2.FLICKER-FREE/SLOW MOTION REPLAY:Slow Motion Replay can record
exciting moments of the contestants. As the advantage of
hi-definition camera technology, conventional 4K camera can reach
2000fps, adopt MW/Inventronic power supply, completely achieve the
effect of flicker-free and meet the need of Slow Motion Replay
3.MODULAR DESIGN CONCEPT:SuperManll adopt modular design concept
based on 250-300W per module, and maximum to 1500W with five
modules.Racked angle make the light fixture can be adjusted to
flexiblycontrol the light, equipped with laser aimer for precise
aiming atthe field.
Thanks to the modular design, SuperMan ll applies to all
kindsofstadiums, sports venues, airport, ports etc.
4.LOW WIND RESISTANCE, HIGH PROTECTION:Thanks to the modular
design,the combination between eachmodule is not completely closed,
which can reduce the overallEPA, SuperMan llis up to lP66 and lK10,
meanwhile it isequipped with wire guard to realize ball-proof,
safety rope fordouble protection
SuperMan ll integrate builtin 10KV surge protection
device,alternative for 20KV
5.CUTTING-EDGE THERMAL MANAFEMENT SYSTEM:The lifespan and
reliability of the light fixture are largely depend onthe thermal
management system, which include three passivecooling method,
conduction,radiation and convection. Fin-designincreases the heat
dissipation & conduction areas, it is much moreconductive to heat
dissipation, performance and lifespan
SuperMan llhas strictcontrol in LED temperature rise of nodes.to
protectits excellen treliability
6.SPILL LIGHT-FREE:There are many suburban sports ground surrounded
mainly byresidential homes which spill lighting seriously affect
the daily life ofthe resident.
SuperMan ll have designed asymmetrical optical lens, which thelight
projection will focus on the sports ground without spill light to
residential homes or surrounding areas.
7.GLARE-FREE:Glare control is an important criterion in
contemporary stadiumlighting design.Excellent glare control not
only allow contestantsto play at a high level, but also facilitate
the shooting of cameraand enhance the visual experience of on-site
audience.
SuperMan ll equipped with conventional visor and unique-designed
opticallens achieve a glare-free feeling
8.HIGH CORROSION & RUST RESSISTANT:Salt mist is the key cause to
rust and corrosion of the light fixture.which will decrease the
structure strength, reliability and lifespan orevenlead to security
incident, especiallyfor coastal areas, such asport, wharf etc.
SuperMan llhas multi-ways for high anti-corrosion treatment tomeet
1000/2000/3000H neutral salt spray by AkzoNobel
powdercoating,electrophoresis,triple powder coating etc.
1.Energy Efficiency: LED High Mast Lights utilize efficient LED
light sources, which result in higher energy utilization compared
to traditional lighting methods, thereby saving power consumption.
LED technology also offers long lifespan and lower maintenance
costs, reducing the frequency and expenses associated with
replacing the fixtures.
2.High Brightness: LED High Mast Lights deliver outstanding
brightness output, providing wide illumination coverage. The high
brightness of LED light sources ensures uniform and bright lighting
in large areas, enhancing visibility and safety during nighttime.
3.Adjustable: LED High Mast Lights often come with adjustable lamp
heads, allowing for the adjustment of light angles and illumination
directions as per requirements. This adjustability enables the
fixtures to better cater to the lighting needs of specific
locations, such as parking lots, highways, ports, and more.
4.Durability: LED High Mast Lights are constructed using
high-quality materials, ensuring durability and resistance to
vibrations. They can operate in harsh weather conditions and
withstand high wind speeds and other environmental pressures,
ensuring long-term stable lighting performance.
5.Environmentally Friendly and Energy Saving: LED High Mast Lights
do not contain harmful substances such as mercury and lead, making
them more environmentally friendly. The high energy efficiency of
LED technology reduces energy consumption, helping to reduce carbon
emissions and making them a sustainable lighting choice.
SuperMan II Family Plan A 150lm/w
Model No. | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W |
Light Source | 440*PCT2835/126*SMD3737 | 880*PCT2835/252*SMD3737 | 1320*PCT2835/378*SMD3737 | 1760*PCT2835/504*SMD3737 | 2200*PCT2835/563*SMD3737 |
LED Brand | Lumileds/OSRAM | ||||
Driver Brand | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN |
Rated Power (W) | 240W | 480W | 720W | 960W | 1200W |
Input Voltage (V) | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz |
Output Voltage(V) | 48 | 48 | 48 | 48 | 48 |
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
THD | <10 | <10 | <10 | <10 | <10 |
Luminous Flux (Im) | 36,000 ±5% | 72,000 ±5% | 108,000 ±5% | 144,000 ±5% | 180,000 ±5% |
CCT (K) | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 |
CRI (Ra) | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 |
Beam Angle | 10/25/45/60*/90°/65*25° | 10/25/45/60/90/65*25° | 10/25°/45/60/90°/65*25° | 10/25°/45/60/90/65*25° | 10/2545/60/90/65*25° |
IP Class | IP66 | IP66 | IP66 | IP66 | IP66 |
IK Class | IK08/IK10 | IK08/1K10 | IK08/IK10 | IK08/IK10 | IK08AK10 |
Outer Carton (mm) | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 |
Net Weight (kgs) | 7 | 14 | 20 | 26 | 32 |
Gross Weight (kgs) | 7.5 | 15 | 22 | 28 | 35 |
SuperMan II Family Plan B 170lm/w
Light Source | 440*SMD3030/126*SMD3737 | 880*SMD3030/252*SMD3737 | 1320*SMD3030/378*SMD3737 | 1760*SMD3030/504*SMD3737 | 2200*SMD3030/630*SMD3737 |
LED Brand | Lumileds/OSRAM | ||||
Driver Brand | MW/SOSEN | MW/SOSEN | MWISOSEN | MW/SOSEN | MW/SOSEN |
Rated Power(W) | 240W | 480W | 720W | 960W | 1200W |
Input Voltage (V) | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz |
Output Voiltage(V) | 48 | 48 | 48 | 48 | 48 |
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
THD | <10 | <10 | <10 | <10 | <10 |
Luminous Fkux (im) | 40,800 ±5% | 81,600 ±5% | 122,400 ±5% | 163,200 ±5% | 204,000 ±5% |
CCT (K) | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 |
CRI (Ra) | >70/>8/>90 | >70/>80/>90 | >70/280/>90 | >70/>80/>90 | >70/>80/>90 |
Beam Angle | 10/25*/45/60*/90/65**25* | 10*/25*/45/60/90/65*25* | 10*/25*/45*/60*/90/65*25* | 10/25/45/60/90/65**25* | 10/25*/45/60/90*/65*25* |
IP Class | IP66 | IP66 | IP66 | IP66 | IP66 |
IK Class | IK08/IK10 | IK08/K10 | IK08/IK10 | IK08/1K10 | IK08/IK10 |
Outer Carton (mm) | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 |
Net Weight (kgs) | 7 | 14 | 20 | 26 | 32 |
Gross Weight (kgs) | 7.5 | 15 | 22 | 28 | 35 |
SuperMan II Family Plan C 150lm/w
Light Source | 440*SMD3030/126*SMD3737 | 880*SMD3030/252*SMD3737 | 1320*SMD3030/378*SMD3737 | 1760*SMD3030/504*SMD3737 | 2200*SMD3030/630*SMD3737 |
LED Brand | LumiIeds/0SRAM | ||||
Driver Brand | MW/SOSEN | MW/SOSEN | MWISOSEN | MW/SOSEN | MWISOSEN |
Rated Power (W) | 300W | 600W | 900W | 1200W | 1500W |
Input Voltage (V) | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz |
Output Voltage(V) | 48 | 48 | 48 | 48 | 48 |
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
THD | THD<10% | THD<10% | THDK10% | THD<10% | THDK10% |
Luminous Fkux (im) | 45,000 ±5% | 90,000 ±5% | 135,000 ±5% | 180,000 ±5% | 225,000 ±5% |
CCT (K) | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 300/4000/500/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 |
CRI (Ra) | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/280/290 | >70/>80/290 |
Beam Angle | 10/25*/45*/60*/90*/65**25* | 10/25/45*/60/90*/65**25* | 10*/25/45*/60*/90*/65*25* | 1025*/45/60*/90/65**25* | 10/2545/60/90/65**25* |
IP Class | IP66 | IP66 | IP66 | IP66 | IP66 |
IK Class | IK08/IK10 | IK08/AIK10 | IK08/IK10 | IK08/K10 | IK08/IK10 |
Outer Carton (mm) | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 |
Net Weight (kgs) | 7 | 14 | 20 | 26 | 32 |
Gross Weight (kgs) | 7.5 | 15 | 22 | 28 | 35 |
Light Distribution:
Accessory:
Simulation:
As a professional led lighting factory,we can do asimulation for you with a perfect lighting solution.

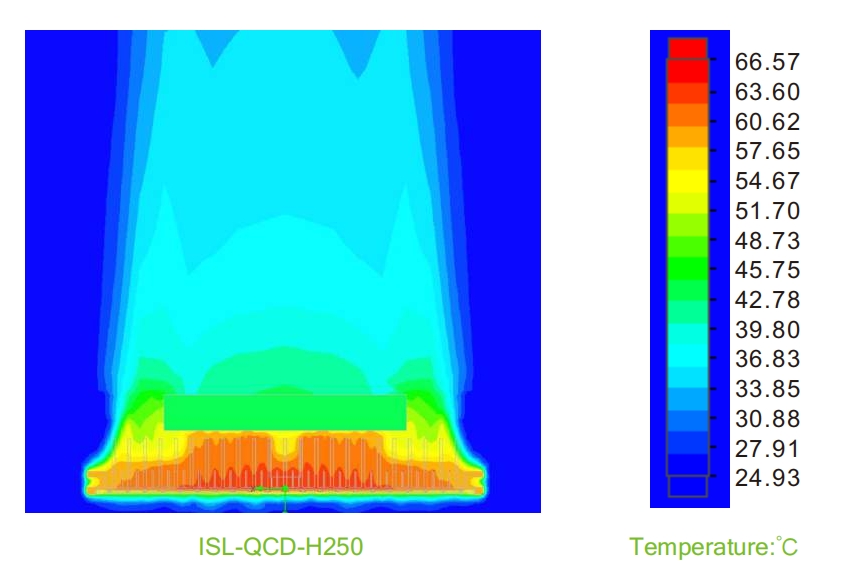

EXCELLENT HEAT DISSIPATION AND LIFE-SPAN ASSURED
The lifespan and reliability of LED fixtures largely depend on
thermal management system which includes threepassive cooling
methods, conduction, radiation, and convection, Die-casting module
design increases heatdissipation areas and conduction areas. lt is
much more conductive to heat dissipation, performance, and lifespan
LED high mast lights are extensively used in various applications
that require powerful and efficient lighting solutions. Here is a
paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor
areas that demand high-intensity illumination. These lights are
commonly used in sports stadiums, providing exceptional brightness
and uniform lighting for sporting events and nighttime matches.
They are also utilized in airports and transportation hubs to
illuminate runways, taxiways, and apron areas, ensuring safe and
efficient operations during low-light conditions. Additionally, LED
high mast lights are employed in industrial facilities, warehouses,
and logistics centers, where they provide bright and reliable
lighting for loading docks, storage yards, and parking areas,
enhancing safety and productivity. Furthermore, these lights are
commonly used in seaports to illuminate container yards, docking
areas, and cranes, enabling efficient cargo handling and enhancing
overall security. Their applications also extend to large parking
lots, highways, and intersections, where they provide excellent
visibility, reducing the risk of accidents and ensuring smooth
traffic flow. Overall, LED high mast lights serve as indispensable
lighting solutions for a wide range of outdoor environments that
require powerful and energy-efficient illumination.
