3000K/4000K/5000K 5 Years Warranty LED Sports Stadium Light Optical
Lens 400W IK08 Silver Color for Harbor
Features Of ISF Series
The MF Series Stadium Floodlight represents a new generation of
outstanding lighting solutions, boasting easy maintenance, easy
installation, versatile light distribution options, and
professional-grade features. Its expectional optical design ensures
outstanding performance, making it the ideal choice for
illuminating outdoor large venues and events, saving maintenance
budget and operating costs.
· Up to 150lm/w, power range: 400w-1800w
· Modular design, a maximum of 3 modules available.
· UV stabilized polyester power paint finish for durability and
corrosion resistance.
· Die-casting aluminum, excellent heat dissipation design, more
conductive to prolong the lifespan.
· Excellent lighting system design, better performance.

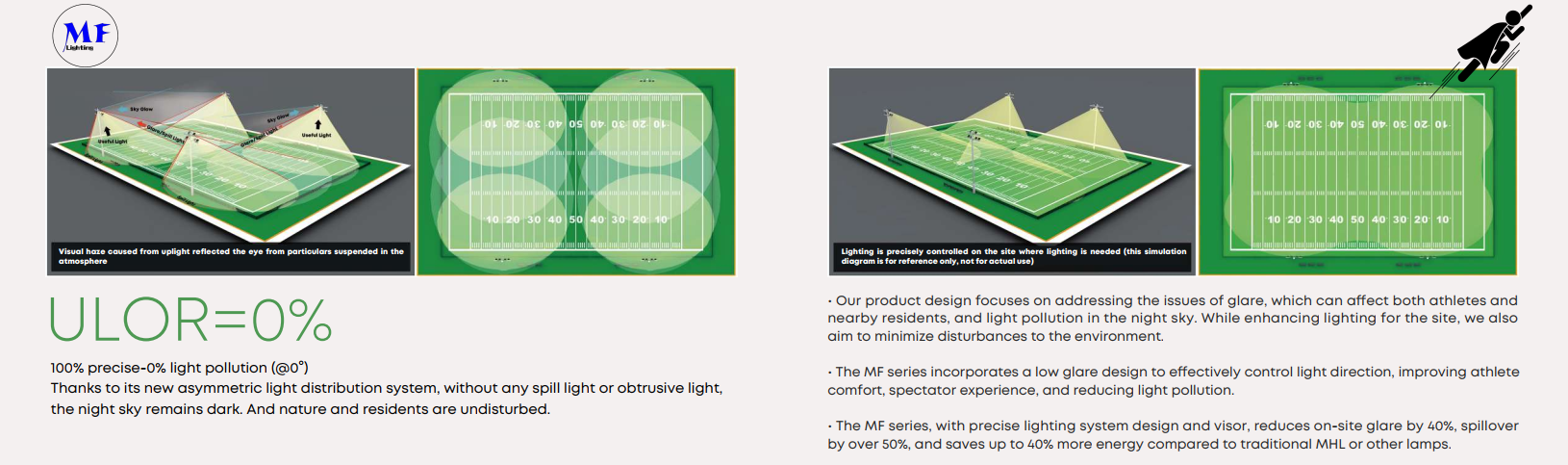

· Eco-friendly, the lighting around the site is not plagued by
light pollution.
· The illumination of the site is significationly improved, with
better uniformity, and the overflow light is reduced to a minimum.
Note: Normal Voltage=100-277VAC, High Voltage=277-480V AC, please
evaluate before choosing. For the power supply in the United States
and Canada, in case the input voltage fluctuation >240v, the
high voltage solution is highly recommended for performance
stability. Improper selection will cause damage to the driver or
the light.

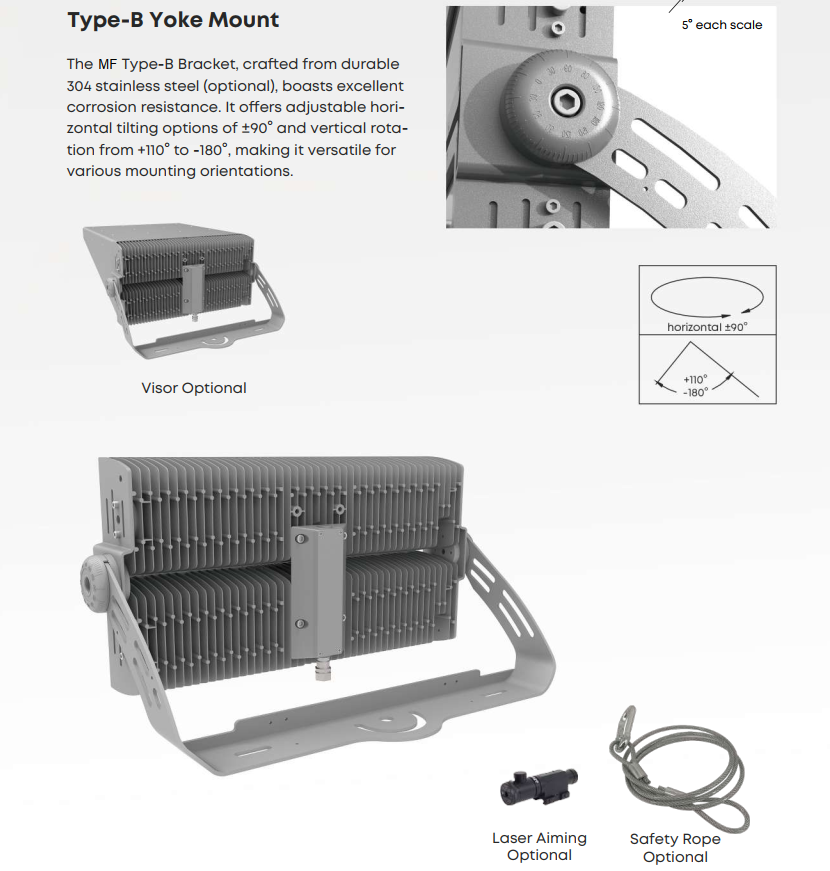

Multiple mounting options turn installation & maintenance job into
a easy way.

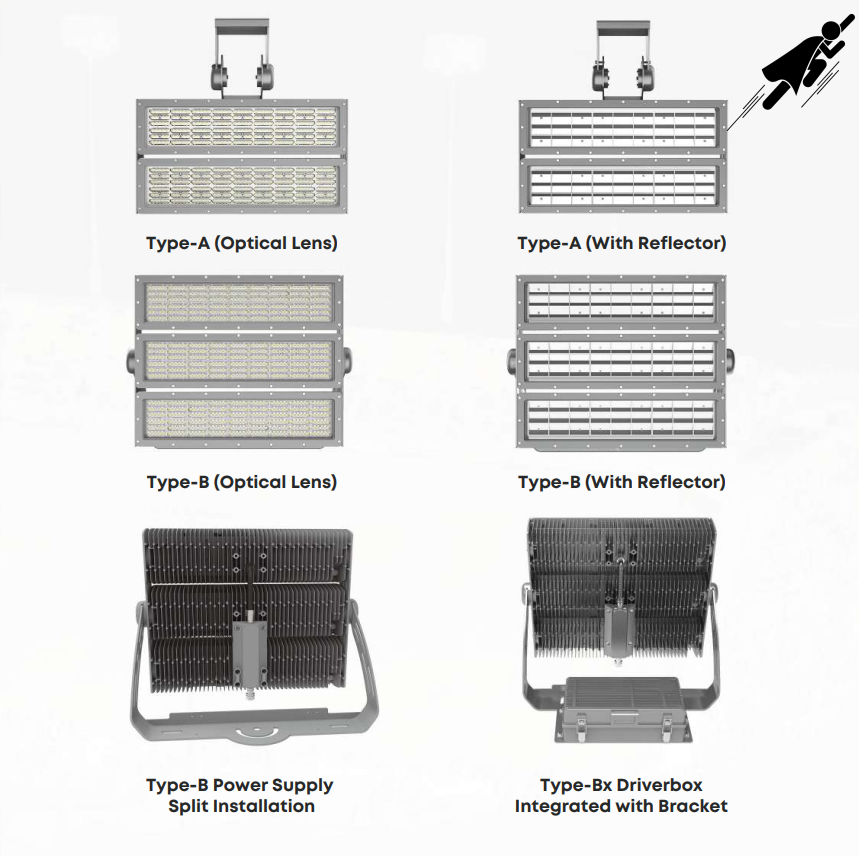

Installation options include integrated and split setups, with
driver box maintenance requiring no tools. you can easily adjust
the position, wither on the bracket or using a remote power box,
ensuring straightforward and convenient maintenance.
Flexible & convenient installation:

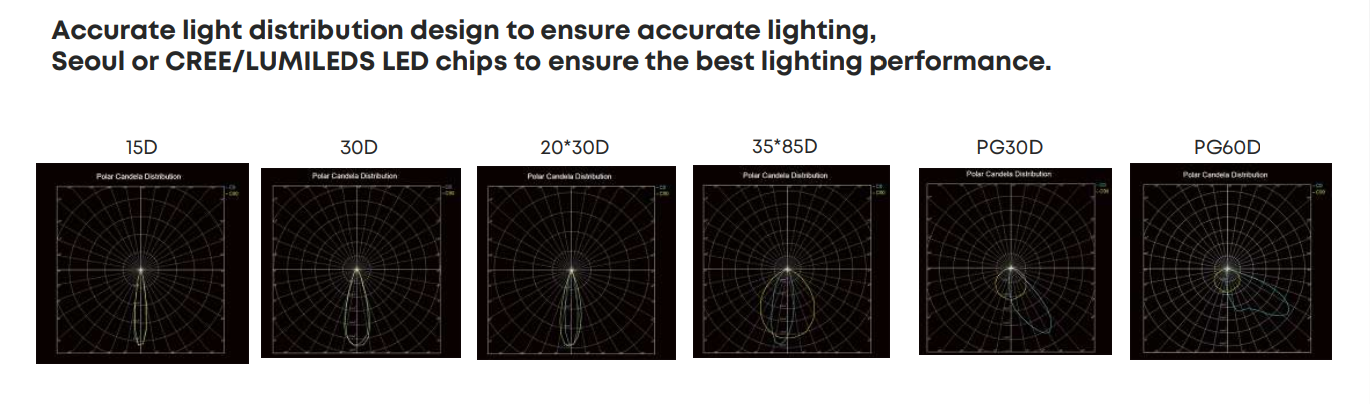

The MF series features a customizable high -performance optical
system designed for professional sports fields. It includes
floodlighting optics for precise pitch illumination, offering
flexibility and excellent light distribution. Speciazed LEDs ensure
high TLCI for television broadcasts.
The MF series introduces an innovative lighting technique for
sports fields, streamlining floodlight installation without
requiring precise aiming. It's designed for sports facilities like
tennis courts, making luminaire installation quick and easy.
Parameter Table:
| Electrical Data |
| Model | MF-400WiSF | MF-600WiSF | MF-800WiSF | MF-1200WiSF | MF-1500WiSF | MF-1800WiSF |
| Power(W) | 400W | 600W | 800W | 1200W | 1500W | 1800W |
| Modules | 1 | 1 | 2 | 2 | 3 | 3 |
| Input Voltage | 100-277V/277-480V, 50/60Hz |
| THD | <20% |
| PF | >0.90 |

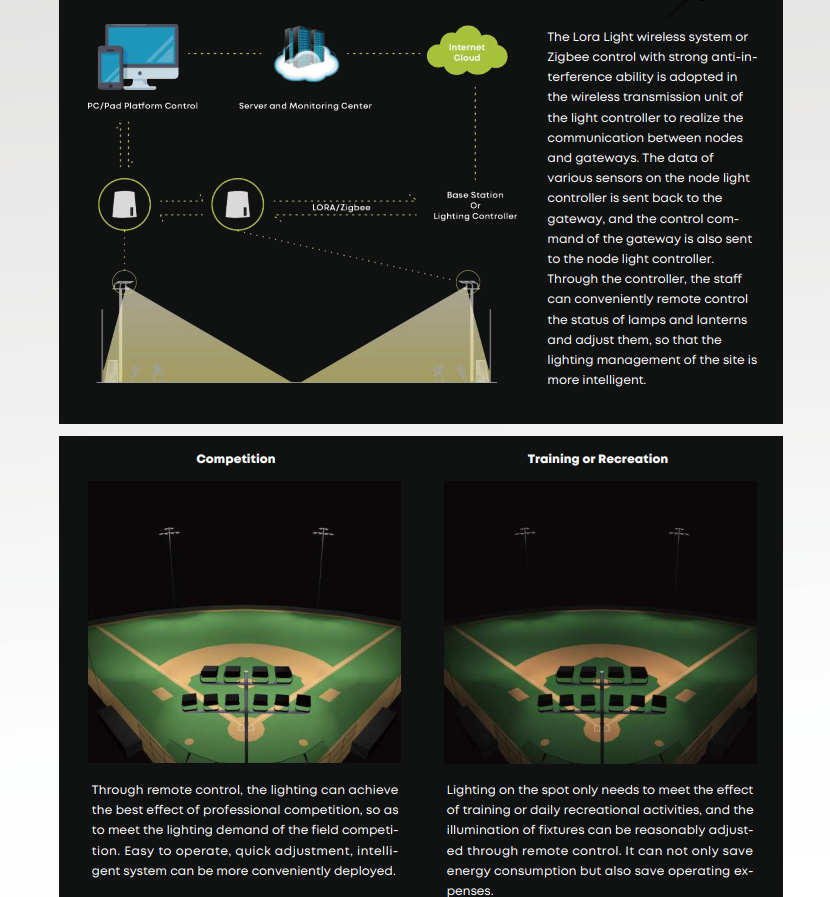

| Control Option | 0-10V/PWM Timer diming (standard), DALI, DMX512 (optional) |
| Amblent Temperature | -40°C to +50°C |
| Driver Brand | Based on the actual project demand |
| Surge protection | 20kv available |
| Photometric Data | |
| Efficacy (lm/w, std, dev. ±5%)@CCT=4000K, CRI>70Ra | 15D | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W |
| 35*85D | 150LM/W | 150LM/W | 150LM/W | 150LM/W | 150LM/W | 150LM/W |
| 20*30D | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W |
| 30D | 150LM/W | 150LM/W | 150LM/W | 150LM/W | 150LM/W | 150LM/W |
| PG30D | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W |
| PG60D | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W | 140LM/W |
| Luminous Flux (lm, std, dev. ±5%)@CCT=4000K, CRI>70Ra | 15D | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm |
| 35*85D | 60000lm | 90000lm | 120000lm | 180000lm | 225000lm | 270000lm |
| 20*30D | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm |
| 30D | 60000lm | 90000lm | 120000lm | 180000lm | 225000lm | 270000lm |
| PG30D | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm |
| PG60D | 56000lm | 84000lm | 112000lm | 168000lm | 210000lm | 252000lm |
| Efficacy (lm/w, std, dev. ±5%)@CCT=4000K, CRI>70Ra, with visor | 15D | 125lm/w | 125lm/w | 125lm/w | 125lm/w | 125lm/w | 125lm/w |
| 35*85D | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w |
| 20*30D | 125lm/w | 125lm/w | 125lm/w | 125lm/w | 125lm/w | 125lm/w |
| 30D | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w | 135lm/w |
| PG30D | / | / | / | / | / | / |
| PG60D | / | / | / | / | / | / |
| Luminous Flux (lm, std, dev. ±5%)@CCT=4000K, CRI>70Ra, with
visor | 15D | 50000lm | 75000lm | 100000lm | 150000lm | 187500lm | 225000lm |
| 35*85D | 54000lm | 81000lm | 108000lm | 162000lm | 202500lm | 243000lm |
| 20*30D | 50000lm | 75000lm | 100000lm | 150000lm | 187500lm | 225000lm |
| 30D | 54000lm | 81000lm | 108000lm | 162000lm | 202500lm | 243000lm |
| PG30D | / | / | / | / | / | / |
| PG60D | / | / | / | / | / | / |
| ULOR | =0%, @Luminaire inclination 0° |
| CCT | 2700K,3000K,4000K,5000K,5700K |
| CRI | Ra70,Ra80,Ra90 |
| Beam Angle | 15D/20*30D/30D/35*85D/PG30D/PG60D |
