200W 3000K-6500K LED Stadium Light CRI70 5 Years Warranty Efficient
Dissipation IP66 Waterproof IK10 For Sport Field
Specifications:
What are the advantages of our product:
The new generation in LED soprts & area lighting, create an
unbelievable
combination of world-class performance, energy saving, cutting-edge
optical & thermal management technology and ongoing low maintenance
cost in one sleek package solution.

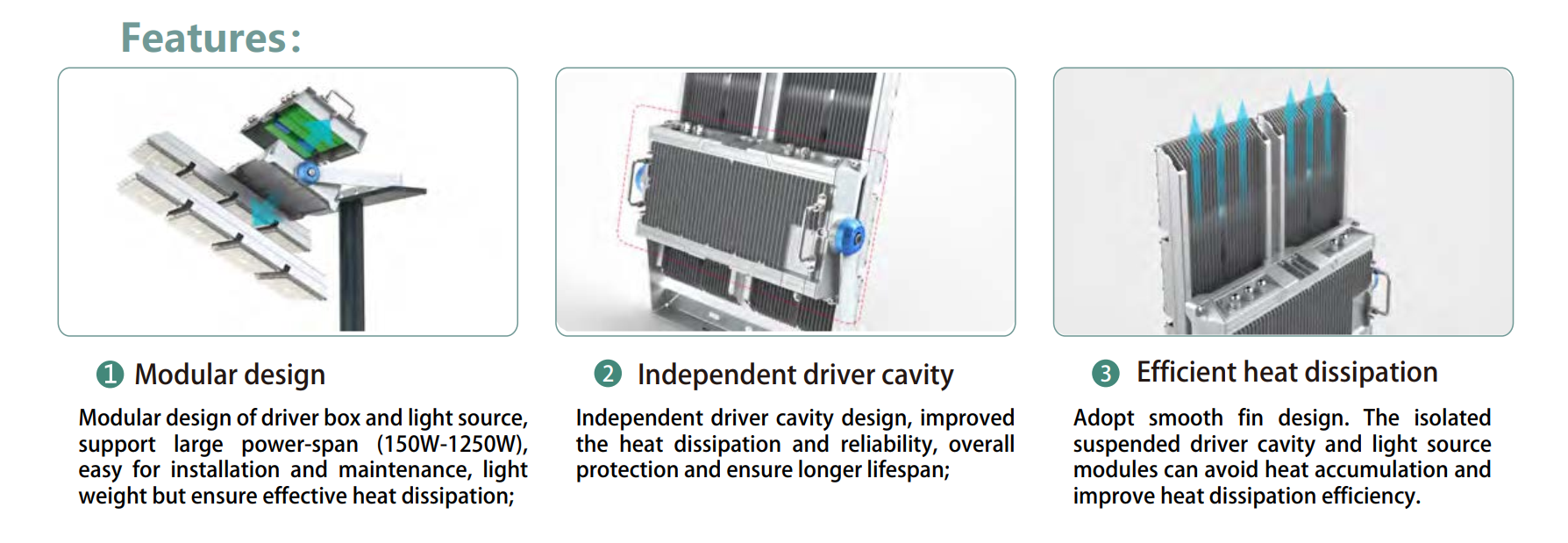

1. Modern design
2. Independent driver cavity
3. Efficient heat dissipation
4. Professional secondary photometric design.
5. New generation LED design
6.Higher waterproof level design
Lighting infrastructure is a strategic resource in modern stadium.
LED lighting not just simply means energy saving, environmental
protection, reducing installation job, and reducing subsequent
maintenance cost. More importantly, it offers new oppirtunities for
the stadium. Different lighting demand can be realized through
intelligent control, making the stadium being a multi-functional
venue which is capable of holding large scale events, such as
concert.
1. Fan enthusiasm is the core part of a contest. Fan's emotion and
atmosphere can be stimulated by pre-game and post-game
entertainment activities, which will increase time that fans stay
in the stadium.
2. Contestants need comfortable light free from glare to reduce
reaction time and avoid mistakes, so that they will surpass at an
exceeding level. In addition, for soprts such as football, both the
vertical and horizontal directions must ensure perfect
illumination.
3. Lighting inside the stadium is the central part of modern
stadium lighting. Superman two series can effectively reduce glare
through muttiple anti-glare design, allowing player to have
upgrading.
4. Large stadium can accommodate tens of thousands of spectators.
MF Lighting is available for floodlight, sports light, tunnel
light, high mast high products.
PARAMETERS:
| Power | 150W | 200W | 240W | 300W | 400W | | Luminous Flux | 21000±5% | 29000±5% | 33600±5% | 42000±5% | 56000±5% | | LED Quantity | 176 pcs | 352 pcs | 352 pcs | 352 pcs | 528 pcs | | Light efficiency | 140lm/W | 145lm/W | 140lm/W | 140lm/W | 140lm/W | | Power | 450W | 720W | 960W | 1200W | | | Luminous Flux | 65250±5% | 100800±5% | 134400±5% | 168000±5% | | | LED Quantity | 528 pcs | 1056 pcs | 1408 pcs | 1760 pcs | | | Light efficiency | 140lm/W | 140lm/W | 140lm/W | 140lm/W | |
|
| Color | WW | NW | CW | CW | | CCT | 3000±300K | 4000±300K | 5000±300K | 5700±300K | | CRI | >70 | | Beam Angle | 15°/25°/45° | | Main Material | PC, Aluminum | | Storage Temperature | -30°C~+60°C | | Operating Temperature | -30°C~+50°C | | Frequency | 47~63HZ | | Input Voltage | 100~240V AC |
|
LED PARAMETERS:
| Brand | Driving Power | Chips size | CRI | LED beam angle | LED light efficiency | | Lumileds | 0.7~1W (120~140mA) | 3.0X3.0X0.52mm | >70 | 120° | 160-170lm/w |
|
Light distribution curve/isocandela diagram:
Procust & Packing dimension:
| Model | Module Qty | Product Dimension | EPA | N.W | Packing diemenison (mm) | Module Dimension |
| MFPL-P5A-150 | 1 | 282.5x295x112 | 0.0397m2 | 3.48kg | 300x310x145 | 155x256x68.8 |
| MFPL-P5A-200 | 2 | 452.5x295x121 | 0.0832m2 | 5.08kg | 340x310x145 | 325x256x68.8 |
| MFPL-P5A-240 | 2 | 452.5x295x121 | 0.0832m2 | 5.23kg | 340x310x145 | 325x256x68.8 |
| MFPL-P5A-300 | 2 | 452.5x295x121 | 0.0832m2 | 6.49kg | 340x310x145 | 325x256x68.8 |
| MFPL-P5A-450 | 3 | 622.0x295x121 | 0.1267m2 | 8.55kg | 510x310x145 | 495x256x68.8 |
| MFPL-P5A-720 | 6 | 605.2x600x185 | 0.2658m2 | 22.07kg | 620x615x200 | 495x537x68.8 |
| MFPL-P5A-960 | 8 | 772.5x600x185 | 0.3571m2 | 26.19kg | 680x615x200 | 665x537x68.8 |
| MFPL-P5A-1200 | 10 | 942.5x600x185 | 0.4484m2 | 30.31kg | 850x615x200 | 835x537x68.8 |

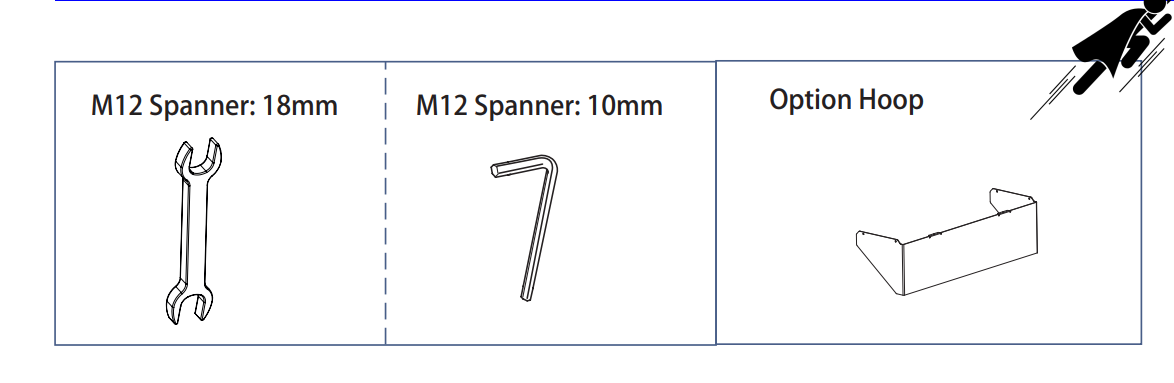

Installation Steps:
Before the installation work of the luminaire, the grid power
supply must be cut off, and work with electricity is strictly
prohibited.
Ensure the luminaire is intace before installation and use.
Notes: Installation requires guidance from qualified personel. It
must be grounded when used outdoor, and make sure the foundation
can support the luminaire.
The light source in this luminaire must be replaced by the staff of
supplier, the designated agent, or the similarly qualified
electrician only.
The external flexible cables cannot be replaced. If the cable is
damaged, luminaire would be destroyed.
This luminaire is not suitable for direct installation on the
surface of ordinary combustible materials.
