240W IP65 NSF LED High Bay Food Light Waterproof 130/150LM/W High CRI 5 Years Warranty For Food Distribution Centers

Application:
Illuminate your space with the NSF Foodie Highbay Light, designed for food processing, warehouse, shopping mall, and exhibition centers. Crafted with precision and quality components, this high-performance light is a game-changer in lighting solutions.

Color Optional:

Key Features:

• IP66 waterproof rating to withstand challenging environments
• Remarkable light efficiency of up to 150Lm/W for superior brightness
• Backed by a reassuring 5-year warranty for peace of mind
• Available in various wattages: 50W, 80W, 100W, 120W, 150W, 200W, 240W
• Die-cast aluminum heat sink, light weigt, better apperance, excellent corrosion resistance.
• 60°, 90° beam angle of PC or 120° of glass
• Multiple mounting options to meet different usage of the product: pendant mount/hook mount.

Additional Information:

The NSF Food High bay Light by Mingfeng Lighting is a cutting-edge lighting solution designed for various applications such as food processing facilities, warehouses, shopping malls, and exhibition centers. With an IP66 waterproof rating and a high efficiency of up to 150Lm/W, this high bay light ensures both durability and energy savings. The product comes with a 5-year warranty and is available in wattages ranging from 50W to 240W, offering flexibility for different lighting needs.

Featuring a die-cast aluminum heat sink, high-brightness SMD chips, and a high-efficiency constant current constant voltage power driver, this intelligent LED high bay light provides exceptional performance. The color options of orange and silver white cater to different aesthetic preferences.

The light distribution is optimized with options for 60°, 90°, or 120° beam angles using PC or glass lenses. With a high light efficiency of up to 150lm/W and a color rendering index (CRI) of over 80, this high bay light ensures quality illumination.

Installation is made easy with multiple mounting options like pendant and hook mounts. The product also supports dimming functionalities and has a long lifetime of over 36,000 hours. Operating within a temperature range of -30 to +50°C, this high bay light is suitable for various environments. It meets international standards such as NSF, ETL, CE, and RoHS certifications, ensuring quality and safety.

Tailored for specific applications such as food processing facilities, warehouses, shopping malls, and exhibition centers, this intelligent LED high bay light provides uniform and glare-free lighting. The color options of orange and silver white allow for customization to suit varying aesthetic preferences.

The light distribution is carefully optimized with options for 60°, 90°, or 120° beam angles using either PC or glass lenses, ensuring precise and efficient lighting coverage. With a high light efficiency of up to 150lm/W and a color rendering index (CRI) exceeding 80, this luminaire promises superior light quality and color accuracy.

Installation is made simple with multiple mounting options including pendant and hook mounts, providing flexibility for different installation requirements. Supporting dimming functionalities and boasting a long lifespan of over 36,000 hours, this high bay light is built to last in demanding environments.

Compliant with international standards such as NSF, ETL, CE, and RoHS certifications, this luminaire meets stringent quality and safety criteria. Each unit includes a detailed product user manual for easy setup and operation, ensuring a hassle-free experience for users.

Parameters:

Electrical Data
Wattage	50W/80W/100W/120W	150W/200W/240W
Power Supply	SOSEN	SOSEN
Input Voltage	AC100-277V	AC100-277V
Power Frequency	50/60Hz	50/60Hz
Input Current	1.5A	1.5A, 2.4A, 3.0A
Power Efficiency	>93%	>93%
Power Factor	>0.93	>0.93
Total Harmonic Distortion	<20%	<20%
Optical Data
LED Type	seoul2835	seoul2835
LED QTY	90/120/150/180pcs, 150/240/270/300pcs	240/300/390pcs, 390/510/600pcs
Efficiency	130/150lm/w	130/150lm/w
Luminous Flux	6500/10400/13000/15600lm, 7500/12000/15000/18000lm	19500/26000/31200lm, 22500/30000/36000lm
CCT	3000K/4000K/5000K/5700K/6500K	3000K/4000K/5000K/5700K/6500K
CRI	>80Ra	>80Ra
Beam Angle	60°, 90° , 120°	60°, 90° , 120°
Others
IP	IP65	IP65
Lens Material	PC/Glass	PC/Glass
Heat Radiator	die-cast aluminum	die-cast aluminum
Dimming	1-10V, PWM Resistor	1-10V, PWM Resistor
Lifetime	L90>36000H	L90>36000H
Operating Temperature	-30~+50	-30~+50
Net Weight	5.0±0.5kg	5.0±0.5kg

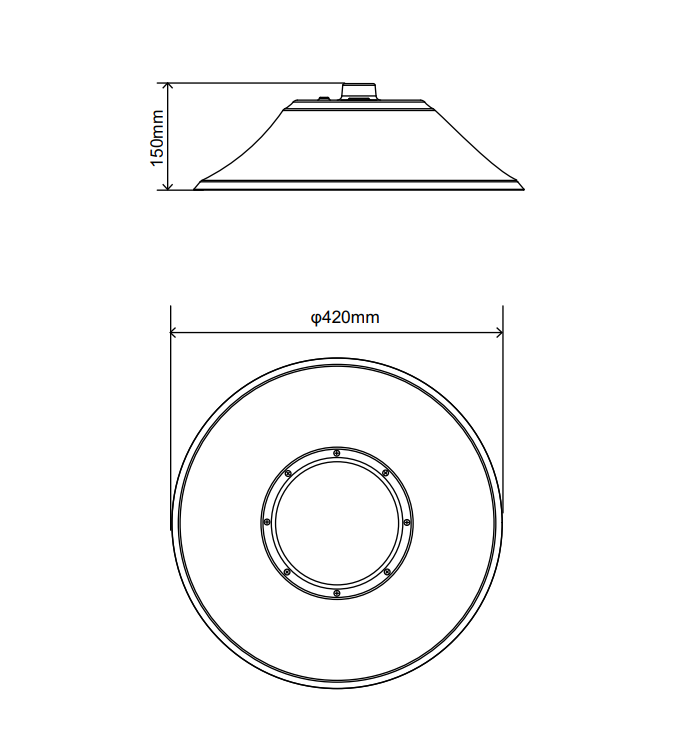

Dimensions	Φ340*150mm	Φ420*150mm
Carton size	470*470*215mm(1pc)	470*470*215mm(1pc)

Installation:

Description:

The function of the NSF Foodie Highbay Light by Mingfeng Lighting is to provide high-quality, energy-efficient illumination for various industrial settings such as food processing facilities, warehouses, shopping malls, and exhibition centers. This high bay light is designed to offer:

Efficient Lighting: With a luminous efficacy of up to 150Lm/W, this luminaire provides bright and uniform illumination, ensuring visibility and safety in the workspace.

Durability and Reliability: Featuring an IP66 waterproof rating and a robust die-cast aluminum heat sink, this light is built to withstand harsh conditions and deliver long-lasting performance.

Versatility: Available in wattages ranging from 50W to 240W, with multiple mounting options and color choices, the high bay light can be tailored to suit different lighting requirements and aesthetic preferences.

Intelligent Control: Equipped with a high-efficiency constant current constant voltage power driver, this LED high bay light supports intelligent control features, offering enhanced lighting management capabilities.
Safety and Compliance: Certified by standards such as NSF, ETL, CE, and RoHS, this luminaire meets stringent safety and quality requirements, ensuring peace of mind for users.

Ease of Installation: The product provides multiple mounting options like pendant and hook mounts, making installation flexible and straightforward.

Customizable Lighting: With options for beam angles and color temperatures, users can customize the light distribution and ambiance to suit specific application needs.

Energy Efficiency: The high light efficiency of up to 150lm/W and support for dimming functionalities contribute to energy savings and operational cost efficiency.

In summary, the NSF Foodie Highbay Light is a versatile, durable, and efficient lighting solution designed to enhance visibility, productivity, and safety in industrial environments while offering customizable features and ease of use.
