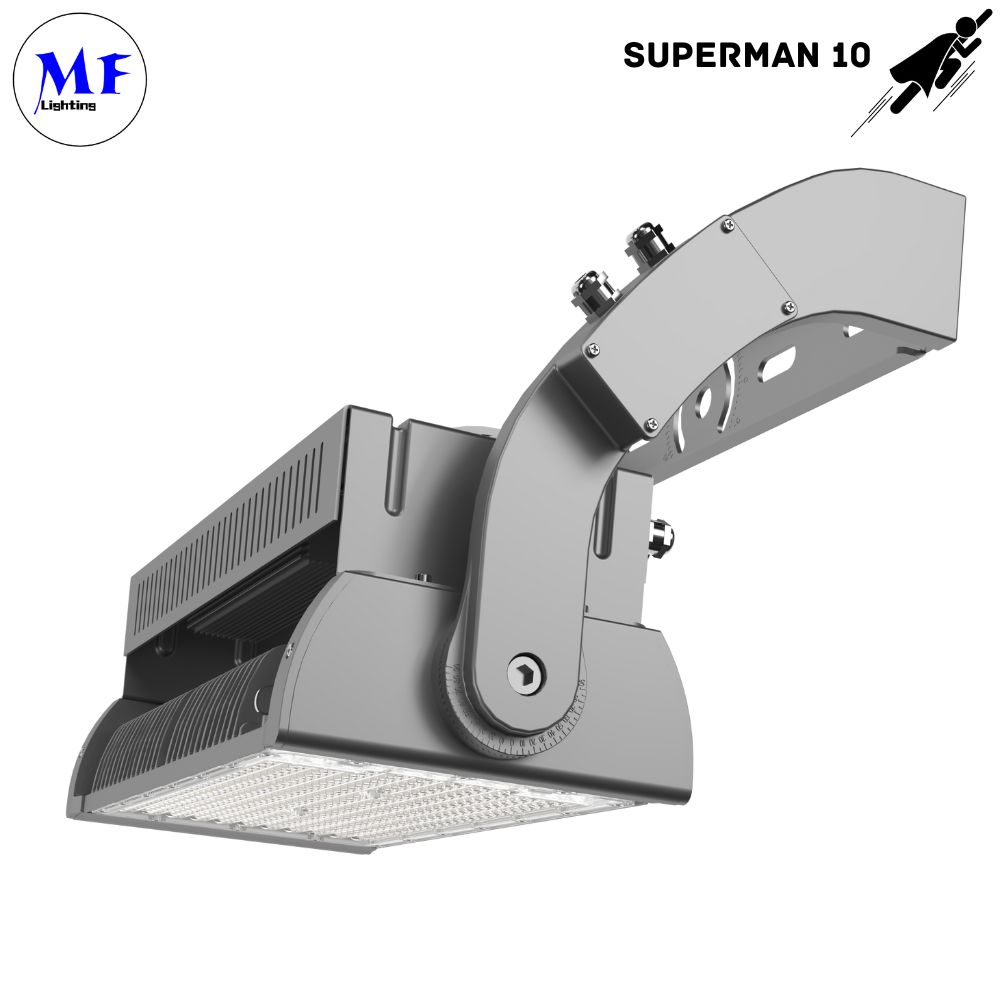

400W/800W/1200W LED Stadium Flood Light 2700K/3000K/4000K/5000K/5700K/6500K Ra80 IP66 6 Years Warranty For Supermarket

400W/800W/1200W LED Stadium Flood Light 2700K/3000K/4000K/5000K/5700K/6500K Ra80 IP66 6 Years Warranty For Supermarket

Key Features:

LED Stadium Light from 400W to 1200W
Lightweight and durable design
Asymmetric light distribution system
Optional DMX or DALI 2 control
Easy plug & play maintenance
High-performance LED efficacy
Eco-friendly and precise light distribution
Flexible and versatile installation options

The MF Series Floodlights/Stadium Lights stand out in the market as a cost-effective and high-performing product. With excellent light efficiency and energy-saving capabilities, these lights are designed to be lightweight, easy to install, and plug & play for maintenance.
• The product features a simple and modularized design, easy to assemble and allowing for quick connections.
• Anti-UV thermosetting polyester (for extremely corrosive environments) finish.
• Optional intelligent lighting control system.

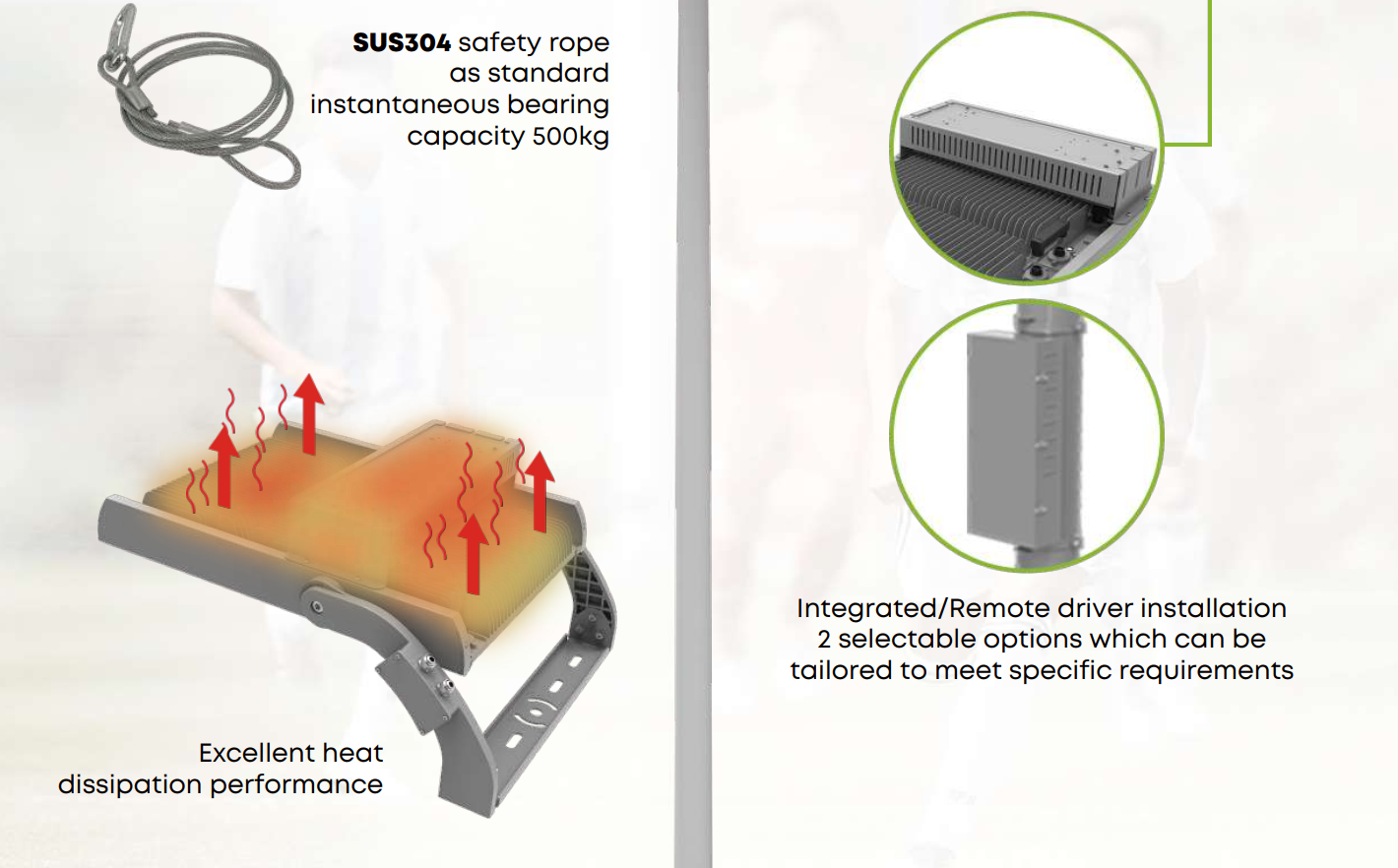

• Die-cast aluminum integral heat dissipation body, meet high-power heat dissipation requirements.
• ULOR: = 0%, @ Luminaire inclination 0°

Key Advantages:
1. Regular 3030 or efficient 5050 optional
High-performance LED efficacy up to 185lm/W or regular 3030 chips economy solutions optional.

2. Plug&Play Maintenance
The plug & play design of the module facilitates eortless replacement of parts.

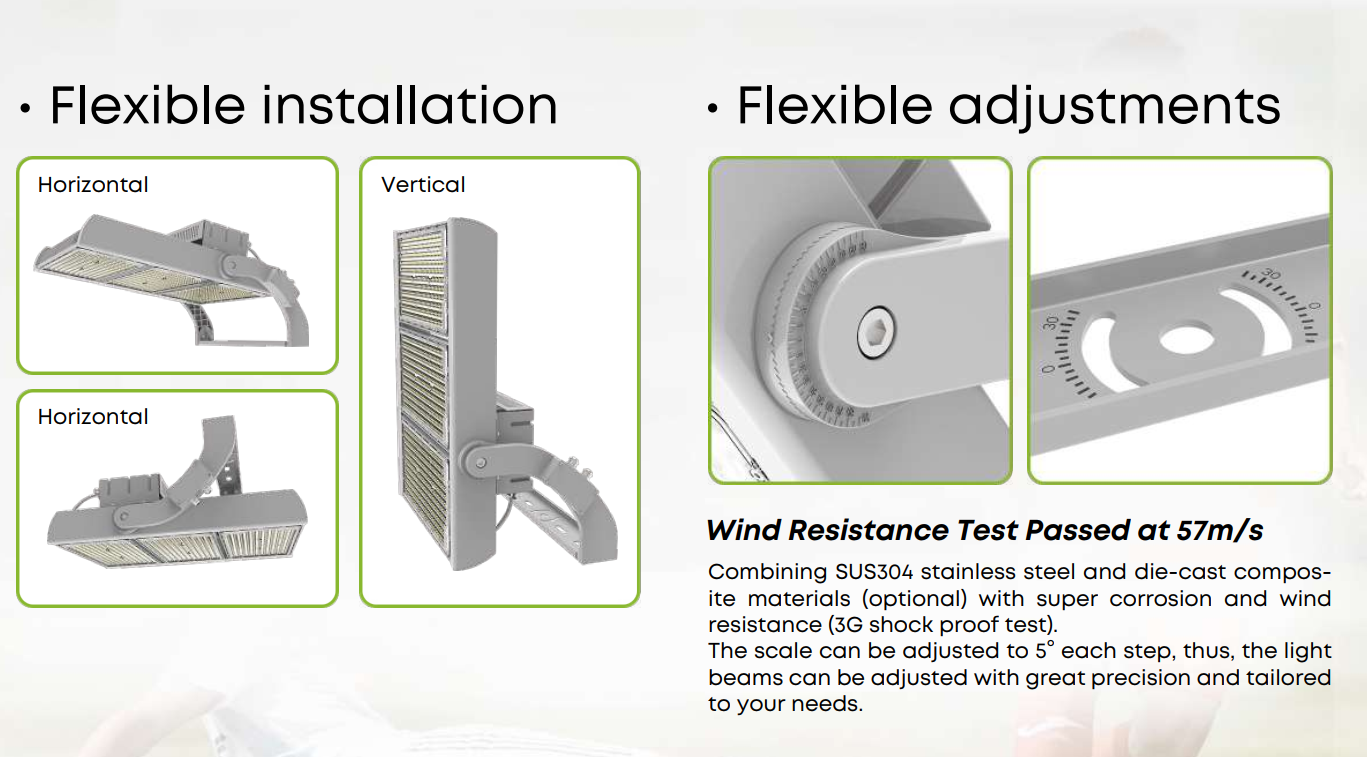

3. Accurate Installation
A dial bracket (optional) simplifies adjusting the angle during installation, making it user-friendly.

4. Reinforced Compound Bracket
Combining SUS-304 stainless steel and die-cast composite materials successfully clears a 3G & wind-resisted test

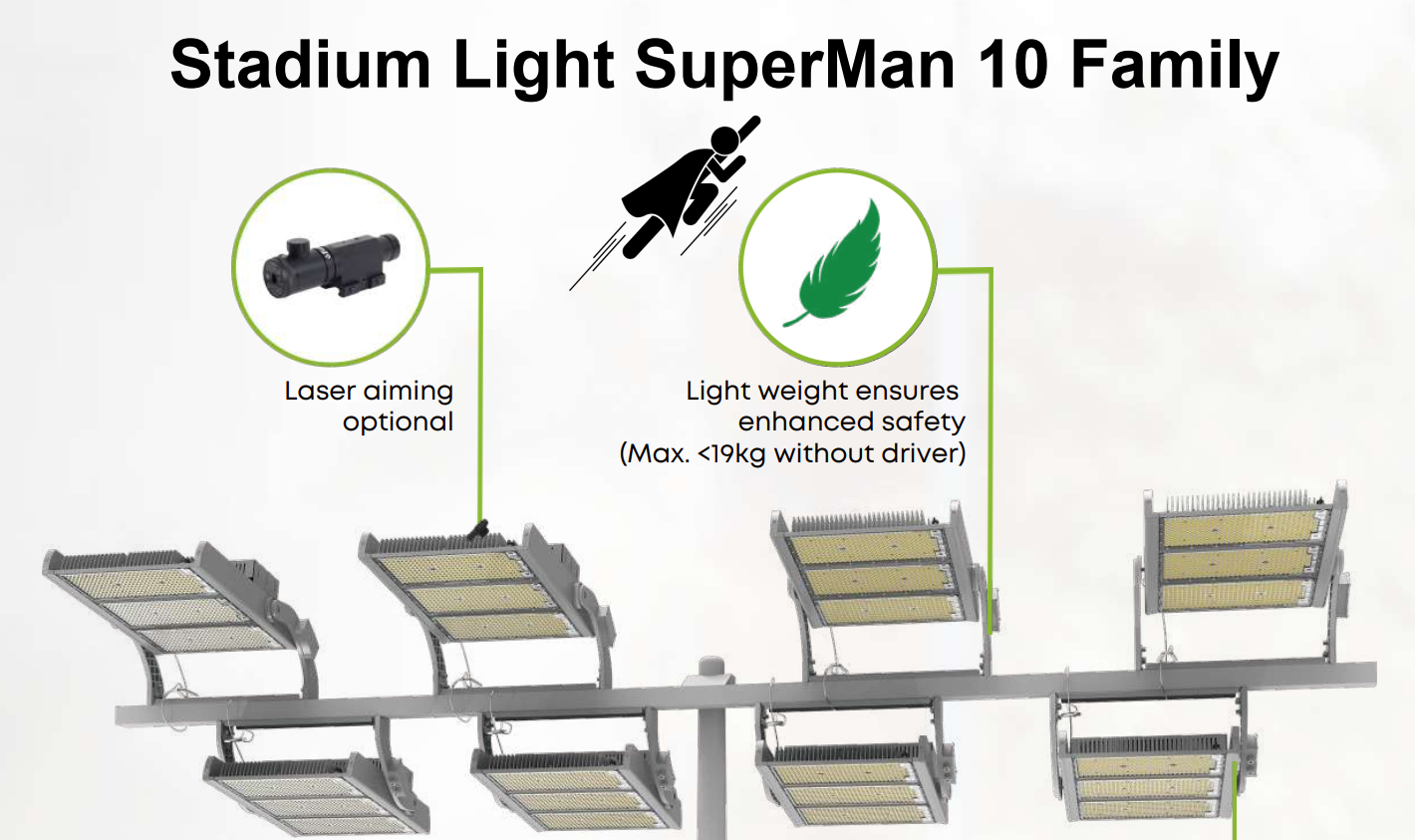

5. Light Weight Design
The 1200W fixture (without driverbox) has a total weight of <19kg, oering a lightweight design without compromising

6. Professional Optic Design For Sports
An asymmetric light distribution system that can be tailored to your specific needs

7. An asymmetric light distribution system that can be tailored to your specific needs
DMX or DALI 2 is optional (in certain configurations). Please consult for detailed functions and requirements.

Maintenance:

Installation:

A NEW FORM OF GREEN LIGHT

Light sets the pace of our lives. Artificial light can be truly annoying. It can throw both us and nature o balance - with far-reaching consequences for insects and the entire downstream food chain.
The MF floodlighting oers particularly insect friendly light with 2700K~3000K options to reduce impact on the environment
The process of manufacturing and disposing of the product must be taken into consideration. That's why we optimize energy usage and employ a clever modular concept in manufacturing our MF product, as well as using plastic-free packaging. This is how we define eco-friendly products.
Thanks to its new asymmetric light distribution system, the Floodlight MF can precisely focus the light onto the sports ground or playing field, and only there. There is no spill light or intrusive light, keeping the night sky dark. Nature and residents remain undisturbed

Upon careful comparison, the FSC series demonstrates superior light efficiency and reduced power consumption, leading to fewer required lamps and overall energy savings. This translates into improved economic viability and lower project costs

Note: The data above is derived from real project simulations and provided for reference only, respecting confidentiality.

Specifications:

Electrical Data
Model	MF-FSC-400W	MF-FSC-600W	MF-FSC-800W	MF-FSC-1000W	MF-FSC-1200W
Power(w)	400W	600W	800W	1000W	1200W
Input Voltage	100-277Vac/200-277Vac/200-480Vac-277-480Vac, 50/60Hz
THD	<12%
PF	0.96
Driver Efficiency	94%
Maximum Current	AC4.49A	AC6.67A	AC8.98A	AC5.61A	AC6.74A
Control option	Driver includes wiring for 0-10V dimming systems. Dim as low as 10%
Operating temperature	-40°C to 45°C (-40°F to 113°F )
Surge Protection	10KV/20KV optional
Photometric Data
Efficacy@5050	180lm/w	185lm/w	180lm/w	185lm/w	180lm/w
Efficacy@3030	140lm/w	145lm/w	140lm/w	145lm/w	140lm/w
CCT	2700K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	70/80Ra
LED Model	A5050/S3030
Lens	Polycarbonate
Beam Angle	120°x40°-P60°
Mechanical Data
IP/IK Rating	IP66/IK10
Vibration resistance	3G
Housing	Heavy-duty die-cast aluminum
Heat radiator	Aluminum Alloy
Surface treatment	Anti-UV thermosetting polyester
Painting	Silver Gray Black Custom request
Cable	Pre-wired wih a 30cm cable (other lengths on request)
Mounting	Yoke mount
Other Data
Lifespan	L70B10 - 108 000 h
Warranty	5 years limited warranty (Warranty extension up to 10 years on request)
Certification	CE, ROHS, ENEC

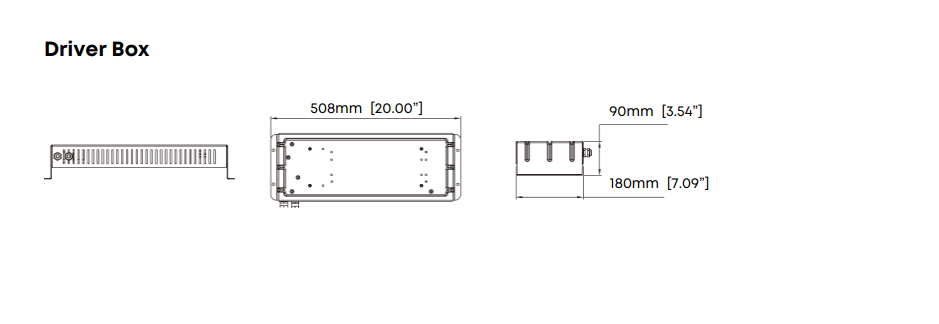

Dimensions:

Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
