900W IK10 LED Stadium Light High Mast Light Modular Design 140lm/W
IP66 Waterproof 10°/25°/45°/60°/90° For Harbor
Specifications:
What are the advantages of our product:
The new generation in LED soprts & area lighting, create an
unbelievable
combination of world-class performance, energy saving, cutting-edge
optical & thermal management technology and ongoing low maintenance
cost in one sleek package solution.
1. All-in-one design to perform
2. Flicker-free/slow motion replay
3. Modular design concept
4. Low wind resistance, high protection.
5. Cutting- eadg thermal management system
6.Spill light-free
7. Glare-free
8. High corrosion & Rust ressistant
Lighting infrastructure is a strategic resource in modern stadium.
LED lighting not just simply means energy saving, environmental
protection, reducing installation job, and reducing subsequent
maintenance cost. More importantly, it offers new oppirtunities for
the stadium. Different lighting demand can be realized through
intelligent control, making the stadium being a multi-functional
venue which is capable of holding large scale events, such as
concert.
1. Fan enthusiasm is the core part of a contest. Fan's emotion and
atmosphere can be stimulated by pre-game and post-game
entertainment activities, which will increase time that fans stay
in the stadium.
2. Contestants need comfortable light free from glare to reduce
reaction time and avoid mistakes, so that they will surpass at an
exceeding level. In addition, for soprts such as football, both the
vertical and horizontal directions must ensure perfect
illumination.
3. LEDs with TLCI>90 is adopted, which can meet the HD camera's
requirement to broadcast. DC dimming program is used to achieve
flicker- free effect and slow motion replay demand.
4. Lighting inside the stadium is the central part of modern
stadium lighting. Superman two series can effectively reduce glare
through muttiple anti-glare design, allowing player to have
upgrading.
5. Beside lighting inside the stadium, lighting outside the stadium
is required to improve as well. MF Lighting has corresponding
product series for selections.
6. Large stadium can accommodate tens of thousands of spectators.
MF Lighting is available for floodlight, sports light, tunnel
light, high mast high products.
Dimensions:
Plan A 150lm/w
| Model No. | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W | | Light Source | 440*PCT2835
126*SMD3737 | 880*PCT2835
252*SMD3737 | 1320*PCT2835
378*SMD3737 | 1760*PCT2835
504*SMD3737 | 2200*PCT2835
563*SMD3737 | | Driver Brand | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | | Rated Power (W) | 240W | 480W | 720W | 960W | 1200W | | Input Voltage (V) | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | | output Voltage (V) | 48 | 48 | 48 | 48 | 48 | | Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | | THD | <10 | <10 | <10 | <10 | <10 | | Luminous Flux (lm) | 36000±5% | 72000±5% | 10800±5% | 144000±5% | 180000±5% | | CCT (K) | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | | CRI (Ra) | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | | Beam Angle | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | | IP Class | IP66 | IP66 | IP66 | IP66 | IP66 | | IK Class | IK08/IK10 | IK08/IK10 | IK08/IK10 | IK08/IK10 | IK08/IK10 | | Outer Carton (mm) | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 | | Net Weight (kgs) | 7 | 14 | 20 | 26 | 32 | | Gross Weight (kgs) | 7.5 | 15 | 22 | 28 | 35 |
|
Plan B 170lm/w
| Model No. | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W | | Light Source | 440*SMD2835
126*SMD3737 | 880*SMD2835
252*SMD3737 | 1320*SMD2835
378*SMD3737 | 1760*SMD2835
504*SMD3737 | 2200*SMD2835
563*SMD3737 | | Driver Brand | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | | Rated Power (W) | 240W | 480W | 720W | 960W | 1200W | | Input Voltage (V) | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | | output Voltage (V) | 48 | 48 | 48 | 48 | 48 | | Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | | THD | <10 | <10 | <10 | <10 | <10 | | Luminous Flux (lm) | 40800±5% | 81600±5% | 122400±5% | 163200±5% | 204000±5% | | CCT (K) | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | | CRI (Ra) | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | | Beam Angle | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | | IP Class | IP66 | IP66 | IP66 | IP66 | IP66 | | IK Class | IK08/IK10 | IK08/IK10 | IK08/IK10 | IK08/IK10 | IK08/IK10 | | Outer Carton (mm) | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 | | Net Weight (kgs) | 7 | 14 | 20 | 26 | 32 | | Gross Weight (kgs) | 7.5 | 15 | 22 | 28 | 35 |
|
Plan C 150lm/w
| Model No. | MF-QCD-H300W | MF-QCD-H600W | MF-QCD-H900W | MF-QCD-H1200W | MF-QCD-H1500W | | Light Source | 440*SMD2835
126*SMD3737 | 880*SMD2835
252*SMD3737 | 1320*SMD2835
378*SMD3737 | 1760*SMD2835
504*SMD3737 | 2200*SMD2835
563*SMD3737 | | Driver Brand | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | MW/SOSEN | | Rated Power (W) | 300W | 600W | 900W | 1200W | 1500W | | Input Voltage (V) | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | 100-305Vac 50/60Hz | | output Voltage (V) | 48 | 48 | 48 | 48 | 48 | | Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | | THD | <10 | <10 | <10 | <10 | <10 | | Luminous Flux (lm) | 45000±5% | 90000±5% | 13500±5% | 180000±5% | 225000±5% | | CCT (K) | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | 3000/4000/5000/5700 | | CRI (Ra) | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | >70/>80/>90 | | Beam Angle | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | 10°/25°/45°/60°/
90°/65*25° | | IP Class | IP66 | IP66 | IP66 | IP66 | IP66 | | IK Class | IK08/IK10 | IK08/IK10 | IK08/IK10 | IK08/IK10 | IK08/IK10 | | Outer Carton (mm) | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 | | Net Weight (kgs) | 7 | 14 | 20 | 26 | 32 | | Gross Weight (kgs) | 7.5 | 15 | 22 | 28 | 35 |
|

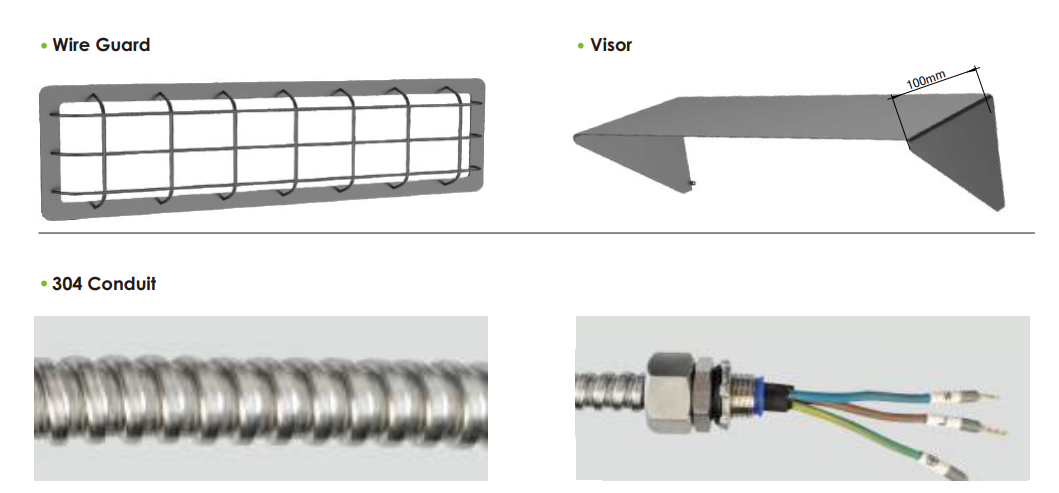

Main Accessories:
EXCELLENT HEAT DISSIPATION AND LIFE-SPAN ASSURED
The lifespan and reliability of LED fixtures largely depend on
thermal management system which includes three passive cooling
methods, conduction, radiation and convection . Die-casting module
design increases heat dissipation areas and conduction area. It is
much more conductive to heat dissipation, performance and lifespan.
Conduction:
Thermal conduction refers to a type of heat dissipation method in
which the heat of the body is directly transferred to the lower
temperature object in contact with it.
Radiation:
Radiation is a heat transfer method in which the heat source is
radiated in a straightline in all directions, and at the same time
absorbs the energy back reflected by the surrounding objects. The
radiation ability of an object (ie, the energy radiated outward
from a unit surface per unit time) increases rapidly with
increasing temperature. Superman series achieves better heat
dissipation capacity by continuously optimizing and increasing the
heat dissipation areas, LED heat is transferred to the heat sink
through thermally con ductive silicone.
Convection:
Thermal convection means that the air temperature rises due to the
radiation, and the volume expands and rises. The cold air is then
replenished, and the heat dissipation surface exchanges heat with
the newly moved cooler air, thus continuously taking away the heat.
As for superman series, each model has an extended fin design to
achieve convection.
Application Fields:
