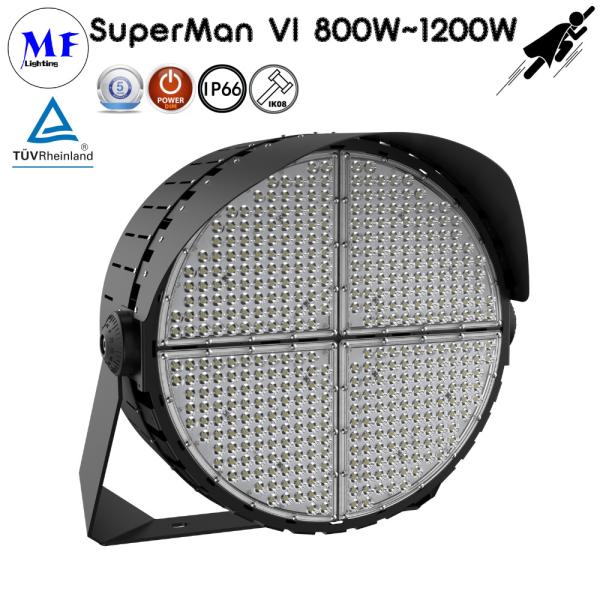

OEM ODM IP66 Waterproof Stadium Sport Lighting Floodlight LED Flood
Light IK10 300W 600W 900W 1000W 1200W
The MF Series Stadium Floodlight represents a new generation of out
standing lighting solutions, boasting easy maintenance, easy
installation, versatile light distribution options, and
professional-grade fea-tures.
lts exceptionaloptical design ensures outstanding
performance,making it the ideal choice for illuminating outdoor
large venues andevents, saving maintenance budget and operating
costs
Light source replaceable : Yes
Number of gearunits : 4 Max.
Driver/power unit/transformer : Power supply unit
Driver included : Yes
Optictype : Symmetrical
Optical cover/lens type : Lens
Luminaire light beam spread : 15°/25°/45%60°
Sensor socke : Yes
Cable length : 50CM as standard
Protection class IEC : Class I
Certifications : CE/RoHS/ENEC/ETL/SAA/PES/SASAO
Lifetime (hour) : 50,000h
EU RoHS complian : YesLight source engine type : LED
Operating and Electrical
| Input voltage | 100-277V/277-480V |
| Input frequency | 50 or 60Hz |
| Current | 8.3A(120-277V)/3.6A(277-480A) |
| THD | <20% |
| Power factor (min) | 0.95 |
Mechanical and Housing
| Housing material | Aluminum |
| Reflector material | Aluminum |
| Opticalcover/lens material | Polycarbonate |
| Optical cover/lens finish | Frosted/transparent |
| Product dimensions mm | 480x480x448mm for 600W
540x540x463mm for 1200W |
| Product dimensions(inch) | 18.89x18.89x17.64 for 600W
21.26x21.26x18.23 for 1200W |
| Product color | Black as standard,white/grey/other colors are customized |
Approval and Application
| Ingressprotection code | IP66 |
| Mech.impact protection code | IK10 |
Initial Performance (IEC Compliant)
| Light output | 160lm/w and 190lm/w |
| Luminous flux to lerance | +/-10% |
| SDCM | Less than 5 |
| Init.Corr.Color Temperature | 2700K/3000K/4000K/6000K |
| Init.Color Rendering Index | 70/80/95 |
| Initial input power | 300W/500W600W/800W/1000W/1200W |
| Power consumotion tolerance | +/-10% |
Application Conditions
| Ambient temperature range | -40 to+60ºC |
| Dimming | 1-10V/DMX/DALI as options |
Logistical Data
| Order product name | MF-QCD-P300W/MF-QCD-P500W/MF-QCD-P600W/MF-QCD-P1000W/MF-QCD-P1200W |
| Net weight(piece) | 16.2Kg/600W, 20.8Kg/1200W |
| Gross weight (piece) | 18.5Kg/600W, 23.9Kg/1200W |
| Packaging dimensions(mm) | 600WCTN:650x490x410MM 1200WCTN:670x540x485MM |
| Pallet | 16pcs/Pallet |
| Packaging unit (piece) | 1pcs/CTN |
Professional Light Distribution
Multiple optical lens choices are available with angles including
to meet the
requirements for professional light distribution and an extensive
scope of applications.
Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking
Lot, Football Field, Basketball Court, Tennis Court, Golf Course
etc.• Outdoor Sports
• Soccer Fields • Stadium • Airport/Seaport • Parking Lots •
Exhibition Center • Golf course • High Mast
Stadiums and Arenas Construction Sites Hangars Bridges, Monuments
and Facades Rail, Work and Shipping Yards Large Distribution
Centers
