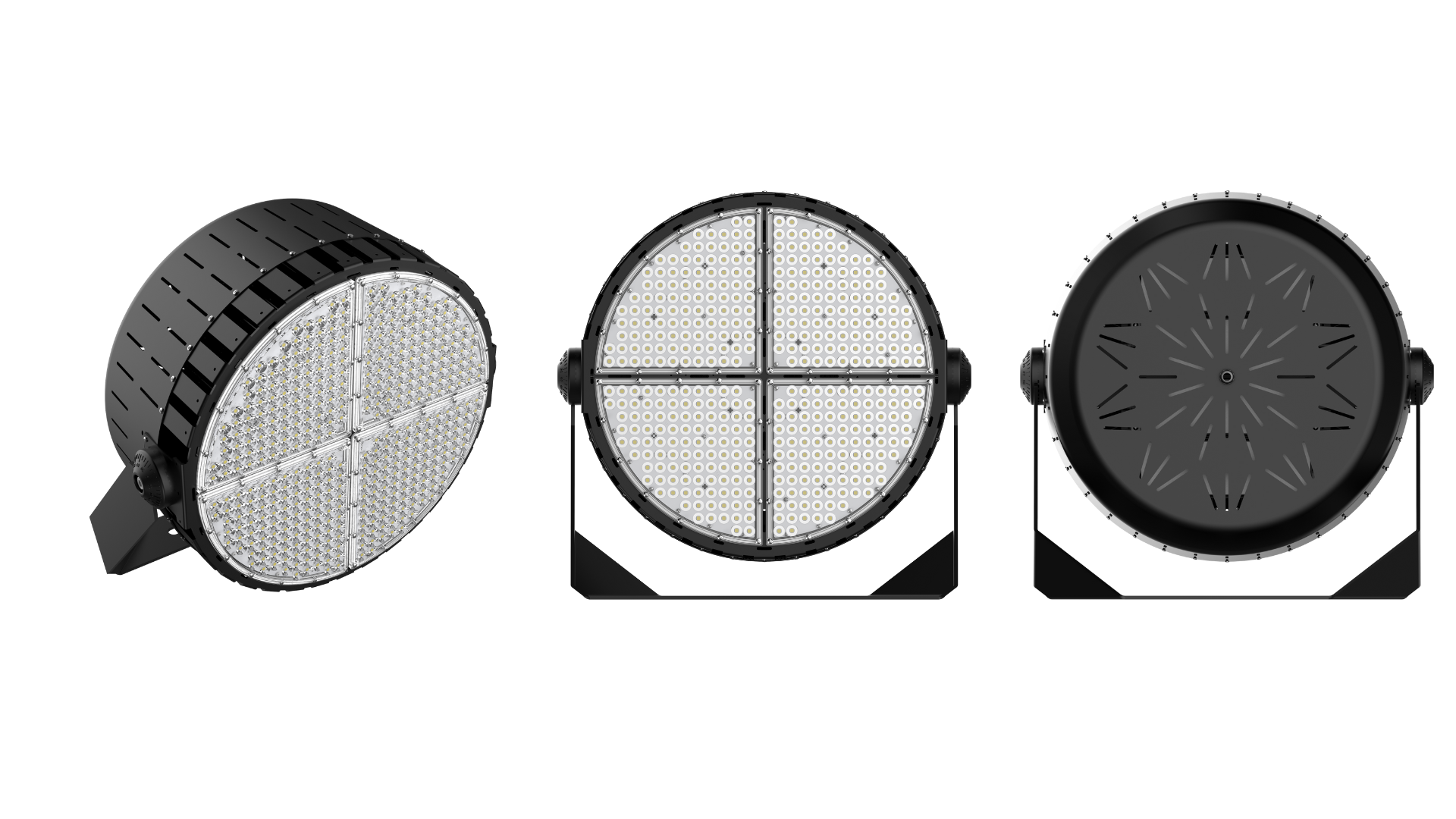

OEM ODM IP66 Waterproof Stadium Sport Lighting Floodlight LED Flood
Light Ik10 300W-1200W With Dimming For Golf Course
The MF Series Stadium Floodlight represents a new generation of out
standing lighting solutions, boasting easy maintenance, easy
installation, versatile light distribution options, and
professional-grade fea-tures.
lts exceptionaloptical design ensures outstanding
performance,making it the ideal choice for illuminating outdoor
large venues andevents, saving maintenance budget and operating
costs
Light source replaceable : Yes
Number of gearunits : 4 Max.
Driver/power unit/transformer : Power supply unit
Driver included : Yes
Optictype : Symmetrical
Optical cover/lens type : Lens
Luminaire light beam spread : 15°/25°/45%60°
Sensor socke : Yes
Cable length : 50CM as standard
Protection class IEC : Class I
Certifications : CE/RoHS/ENEC/ETL/SAA/PES/SASAO
Lifetime (hour) : 50,000h
EU RoHS complian : YesLight source engine type : LED
Operating and Electrical
| Input voltage | 100-277V/277-480V |
| Input frequency | 50 or 60Hz |
| Current | 8.3A(120-277V)/3.6A(277-480A) |
| THD | <20% |
| Power factor (min) | 0.95 |
Mechanical and Housing
| Housing material | Aluminum |
| Reflector material | Aluminum |
| Opticalcover/lens material | Polycarbonate |
| Optical cover/lens finish | Frosted/transparent |
| Product dimensions mm | 480x480x448mm for 600W
540x540x463mm for 1200W |
| Product dimensions(inch) | 18.89x18.89x17.64 for 600W
21.26x21.26x18.23 for 1200W |
| Product color | Black as standard,white/grey/other colors are customized |
Approval and Application
| Ingressprotection code | IP66 |
| Mech.impact protection code | IK10 |
Initial Performance (IEC Compliant)
| Light output | 160lm/w and 190lm/w |
| Luminous flux to lerance | +/-10% |
| SDCM | Less than 5 |
| Init.Corr.Color Temperature | 2700K/3000K/4000K/6000K |
| Init.Color Rendering Index | 70/80/95 |
| Initial input power | 300W/500W600W/800W/1000W/1200W |
| Power consumotion tolerance | +/-10% |
Application Conditions
| Ambient temperature range | -40 to+60ºC |
| Dimming | 1-10V/DMX/DALI as options |
Logistical Data
| Order product name | MF-QCD-P300W/MF-QCD-P500W/MF-QCD-P600W/MF-QCD-P1000W/MF-QCD-P1200W |
| Net weight(piece) | 16.2Kg/600W, 20.8Kg/1200W |
| Gross weight (piece) | 18.5Kg/600W, 23.9Kg/1200W |
| Packaging dimensions(mm) | 600WCTN:650x490x410MM 1200WCTN:670x540x485MM |
| Pallet | 16pcs/Pallet |
| Packaging unit (piece) | 1pcs/CTN |

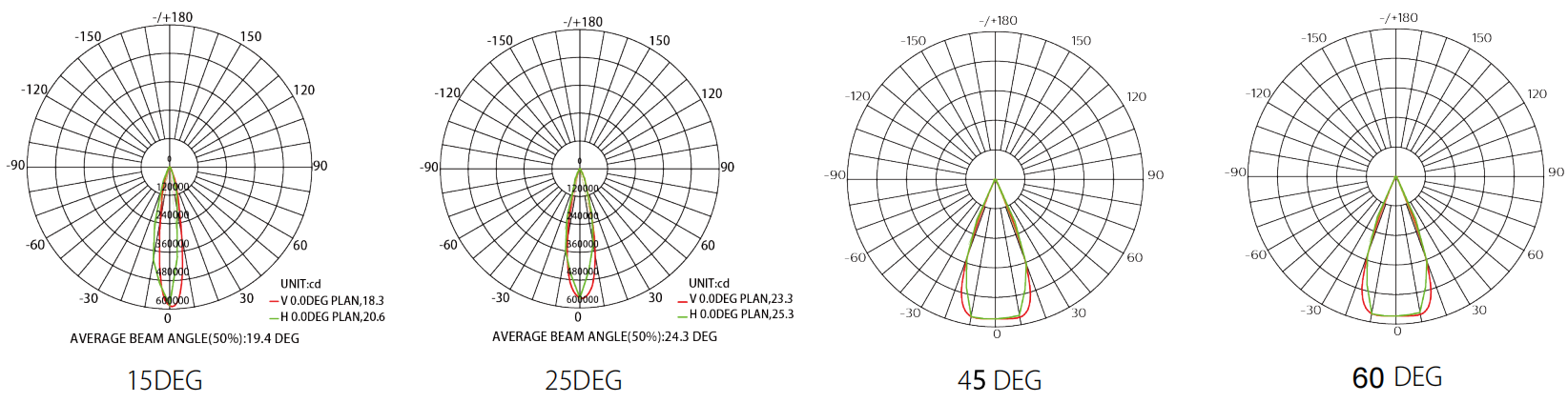

Professional Light Distribution
Multiple optical lens choices are available with angles including
to meet the
requirements for professional light distribution and an extensive
scope of applications.
LED high mast lights are extensively used in various applications
that require powerful and efficient lighting solutions. Here is a
paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor
areas that demand high-intensity illumination. These lights are
commonly used in sports stadiums, providing exceptional brightness
and uniform lighting for sporting events and nighttime matches.
They are also utilized in airports and transportation hubs to
illuminate runways, taxiways, and apron areas, ensuring safe and
efficient operations during low-light conditions. Additionally, LED
high mast lights are employed in industrial facilities, warehouses,
and logistics centers, where they provide bright and reliable
lighting for loading docks, storage yards, and parking areas,
enhancing safety and productivity. Furthermore, these lights are
commonly used in seaports to illuminate container yards, docking
areas, and cranes, enabling efficient cargo handling and enhancing
overall security. Their applications also extend to large parking
lots, highways, and intersections, where they provide excellent
visibility, reducing the risk of accidents and ensuring smooth
traffic flow. Overall, LED high mast lights serve as indispensable
lighting solutions for a wide range of outdoor environments that
require powerful and energy-efficient illumination.
LED high power flood stadium lights are widely used in various
applications where powerful, focused, and energy-efficient lighting
is required. Here is a paragraph describing the applications of LED
high power flood stadium lights:
LED high power flood stadium lights are extensively employed in
outdoor sports stadiums and arenas to provide exceptional lighting
for sporting events. These lights offer high-intensity illumination
and excellent beam control, ensuring uniform coverage of the
playing field, enabling athletes to perform at their best, and
enhancing the viewing experience for spectators. Additionally,
these lights find application in large outdoor concert venues and
music festivals, where they create a vibrant and visually appealing
atmosphere for performers and audiences alike. Their ability to
produce bright and focused lighting makes them suitable for
illuminating stages, outdoor sets, and event spaces during film and
television productions. Moreover, LED high power flood stadium
lights are used in architectural lighting projects, highlighting
the facades of buildings, monuments, and landmarks, enhancing their
aesthetics, and creating dramatic visual effects. These lights are
also deployed in industrial facilities, warehouses, and
construction sites, providing ample lighting for improved safety,
productivity, and overall operational efficiency. Overall, LED high
power flood stadium lights are versatile lighting solutions that
find application in various outdoor environments, ranging from
sports and entertainment venues to industrial and architectural
settings.
