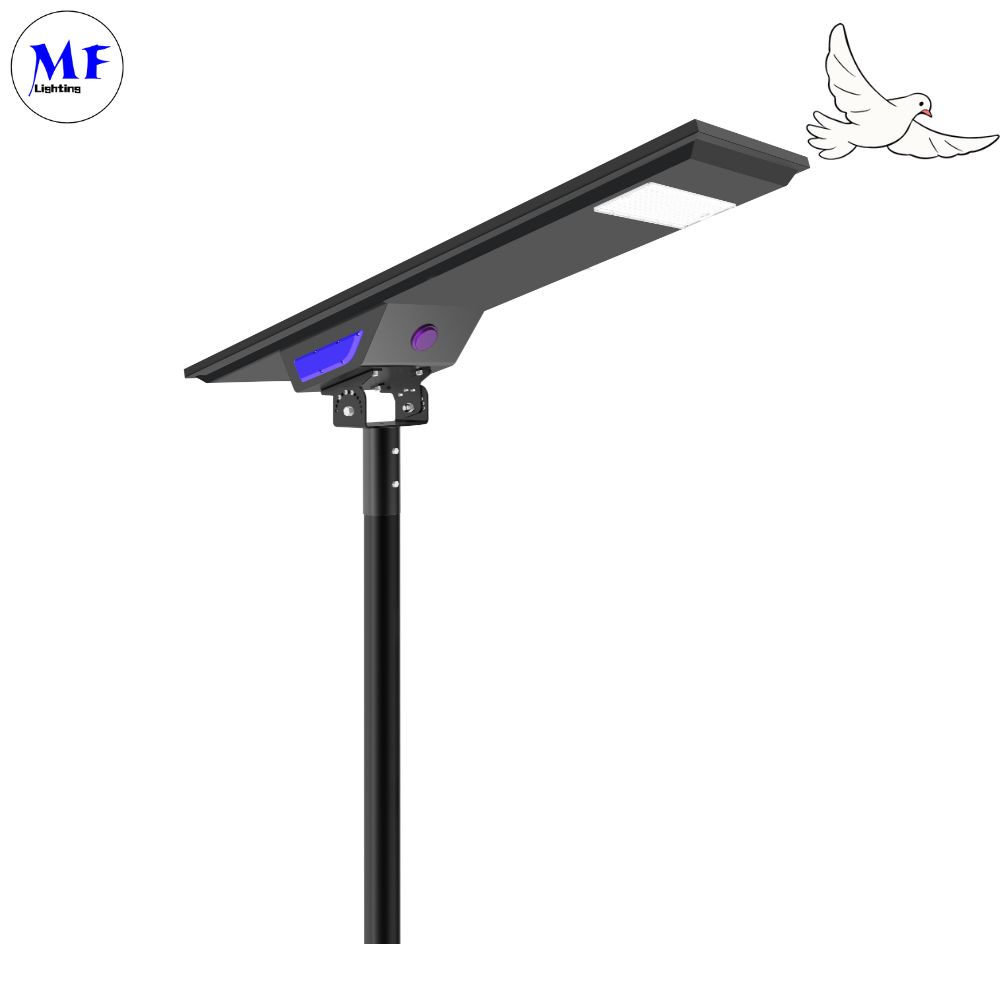

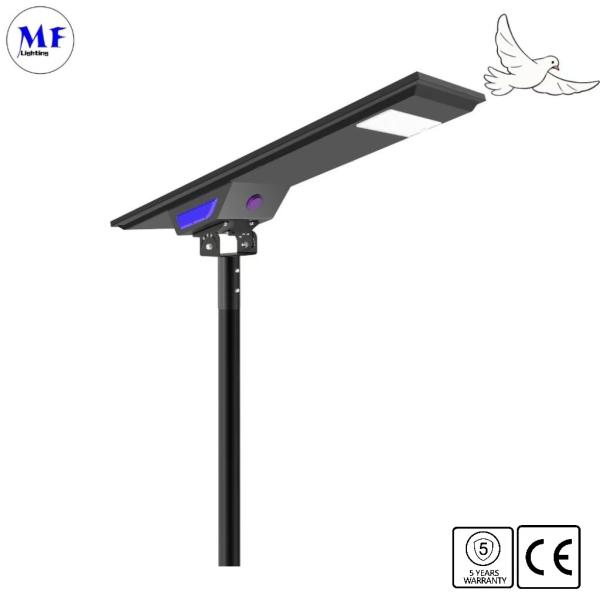

120W 180lm/W LED Outdoor Street Garden Lighting 5 Years Warranty
Waterproof 3000-6500K High Brightness For Sidewalk
Product Advantages:
1. High efficiency solar panels
2. Sheet metal integrated iron shell
3. Guide light
4. Angle adjustable
5. High efficiency LED chips, Batwing lens with professional light
distribution
Ensure the safety and security of your community with our LED solar
street lights. By illuminating streets and walkways, these lights
enhance visibility and deter potential threats, creating a safer
environment for pedestrians and drivers alike. Experience peace of
mind knowing that your streets are well-lit and secure.
Feature Technologies:
Unique Design Patent
Boasting an exclusive fusion of solar panel, microcomputer
controller, lithium battery, and high-efficiency LED light source
seamlessly interwoven for a distinctive appearance.
Efficient Modular Design
Embracing a modular approach for the battery and LED chip,
simplifying transportation, installation, and maintenance for
enhanced cost-effectiveness.
Revolutionary Control System
Developed in-house by Road Smart, the solar controller offers
versatile adjustment of various operational modes, featuring a
distinctive control system with advanced functionality for
increased stability. It can also be optionally equipped with
microwave induction capabilities to conserve power and extend
lighting durations.
State-of-the-Art Power Management
The latest iteration of intelligent power control has been refined
to intelligently regulate discharge power based on real-time
weather conditions, ensuring extended lighting durations and
enhanced performance during inclement weather.
Intelligent high-efficiency lamp chips
3030 lamp chips, optimized brightness, the whole lighting
efficiency is greater than 160lm/w
Smart Charge and Discharge Control
Benefiting from dual software and hardware safeguards, alongside
intelligent equalization technology, ensuring over 2000 cycles of
efficient charging and discharging.
Specialized Illumination Engineering
Featuring a proprietary lens design for uniform light distribution
across the irradiation area.
Battery Capacity Indicators
Clear indicator lights for battery capacity provide a convenient
visual display, facilitating easy monitoring of the lamp's charging
and discharging status.
Adjustable Rotation Feature
Designed for flexibility, allowing for the precise adjustment of
illumination area and light angle based on road width requirements.
Working Modes:
Solar-powered streep lamp provides the adaptive proportion dimming
profile for the output canstant current level to perform up to 12
consecutive hours.

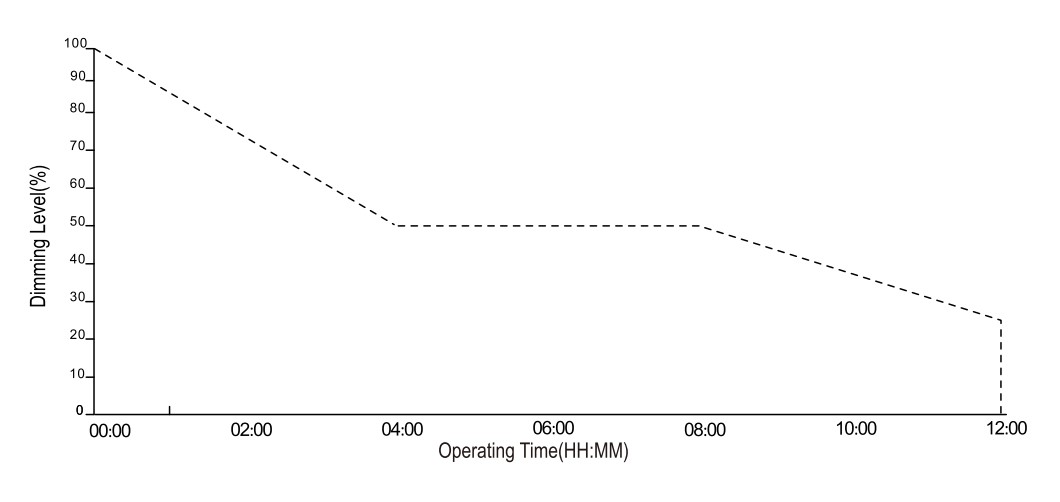

The light is on for 12 hours every day. In the first four hours,
the power decreases gradually. In the second four hours, the power
is maintained at 50%, and in the third four hours, the power is
maintained at 25%

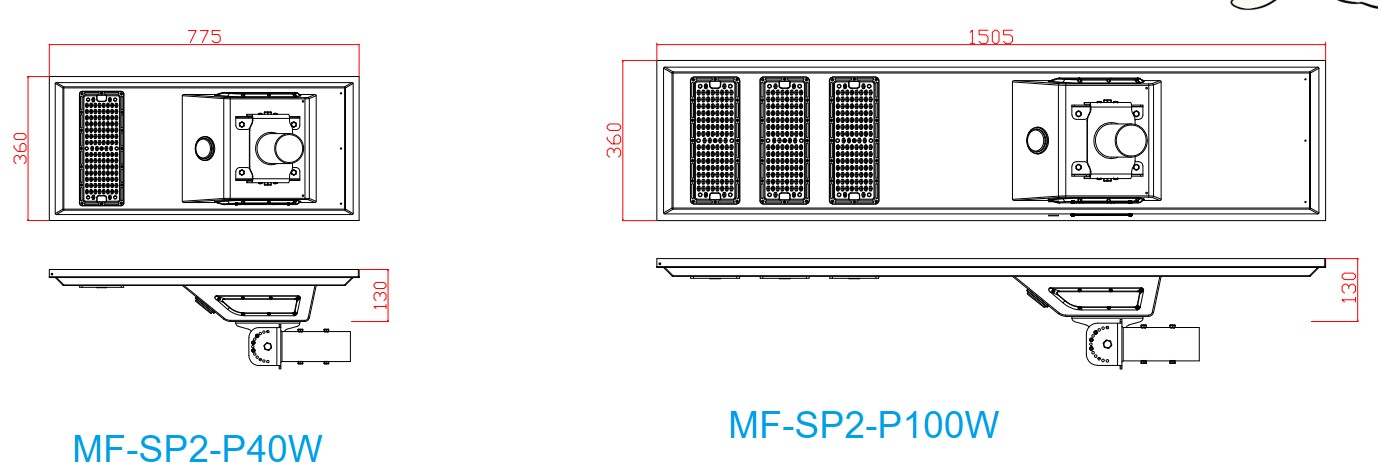

Dimensions:
Parameter:
Parameter:
| Type | 40W | 50W | 60W | 80W | 100W | 120W | 150W |
| Solar panel | 18V/50W | 18V/65W | 18V/80W | 18V/100W | 36V/110W | 36V/110W | 18V/150W |
| LiFePO4 battery | 192WH | 230WH | 384WH | 460WH | 512WH | 640WH | 768WH |
| Luminous flux | 180lm/w |
| Lamp power | 40W | 50W | 60W | 80W | 100W | 120W | 150W |
| LED qty | 120pcs | 120pcs | 240pcs | 240pcs | 360pcs | 360pcs | 480pcs |
| Lifespan of LED | 50000hrs |
| Color temperature | 3000-6500K |
| Light distribution | Batwing lens with polarized light |
| Lighting time | 5-7 rainy days |
| Working temperature | -20°C~60°C |
| Top diameter of pole | 60MM | 76MM |
| Mounting height | 7-10m |
| Installation spacing | 20-40m |
Packaging:
| Type | G.W | CBM (nm) |
| 40W | 14kg | 835*380*200 |
| 50W | 16kg | 1075*380*200 |
| 60W | 19.7kg | 1295*380*200 |
| 80W | 23.2kg | 1565*380*200 |
| 100W | 25.4kg | 1565*380*200 |
| 120W | 28.5kg | 1725*380*200 |
| 150W | 33kg | 1915*390*200 |

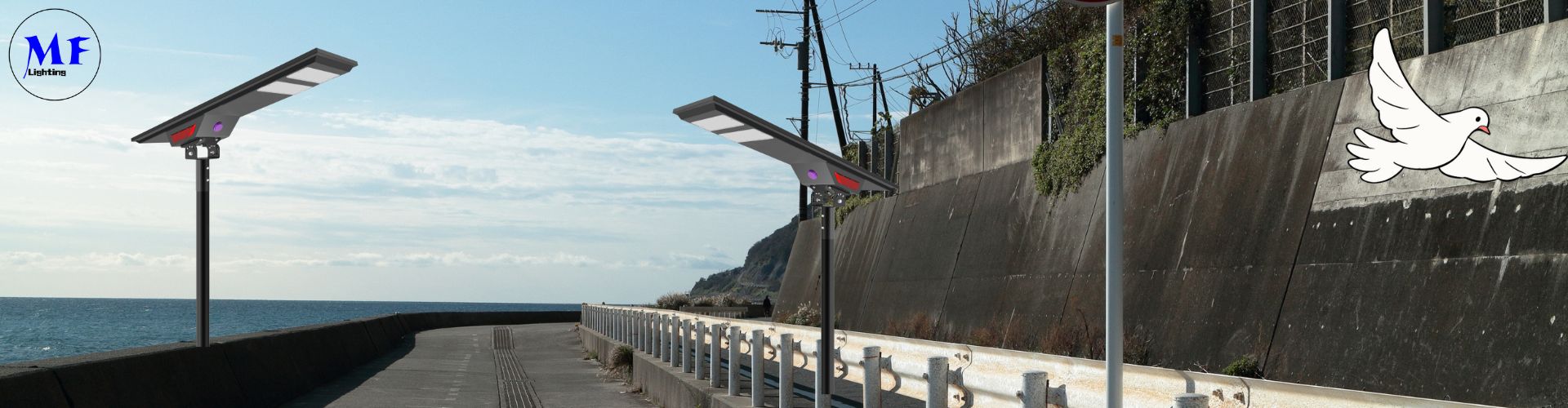

Applications:
garden, plaza, pathway, sidewalk, side pavement, footwalk, footway,
villa, courtyard.
About us:
Ming Feng Lighting Co., Ltd. is a leading LED lighting manufacturer
with its own factory. Our company specializes in the design,
production, and distribution of high-quality LED lighting products.
With years of experience in the industry, we have established a
reputation for excellence and innovation in LED lighting
technology. Our team of skilled professionals is dedicated to
providing customers with the best LED lighting products and
services. At Ming Feng Lighting Co., Ltd., we pride ourselves on
our commitment to quality and customer satisfaction. Whether you
are looking for residential or commercial LED lighting solutions,
we have the expertise and resources to meet your needs.
FAQ:
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light,
explosion proof light, tri-proof light, downlight, and other
lighting products, as well as responsible services and reliable
after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally
before our production and confirm the design firstly based on our
sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new
order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One
sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for
bulk order, but sometimes depend on the order quantity.
