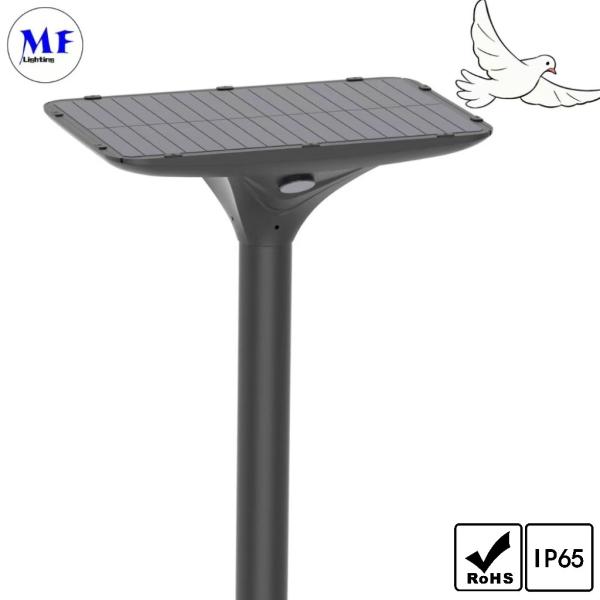

190lm/W 30W LED Outdoor Street Garden Light 3 Years Warranty IP66
70ra Aluminum Waterproof For Parking Lot
• Power range: from 10W to 30W;
• Municipal electricity supply optional;
• Using LiFePO4 batteries, with the capability to charge and
discharge for over 2000 cycles, oters a safer and relatively
smaller size and longer lifespan;
• Continuously work 2-3 rainy days under intelligent mode;
• Die-cast aluminum fixture housing ;
• UV stabilized polyester powder paint finish for durability and
corrosion resistance, C5-grade painting;
• Mounting options: Post Top installation;
• Streamlined design to reduce wind resistance;
• Optical systems maintain an IP65 rating;
• ULOR=0%, no up light pollution;
• MPPT intelligent controller, features an intelligent
energy-saving mode with selectable levels, extending the lighting
duration and automatically adjusting brightness
Multiple power options are available, including 10W, 20W, and 30W
configurations. The innovative design features a streamlined
structure that enhances wind resistance. High efficiency and energy
savings are achieved through an MPPT intelligent controller paired
with a monocrystalline silicon solar panel, delivering single lamp
efficiencies of up to 190 lm/W. The long lifespan is ensured by
utilizing lithium-ion batteries capable of over 2000
charge-discharge cycles. Intelligent lighting control incorporates
an energy consumption mode and automatic brightness adjustment,
allowing for continuous operation even during extended rainy
periods lasting 2-3 days. A variety of protective functions include
battery/photovoltaic reverse protection as well as LED short
circuit/break/power limit safeguards. This system can seamlessly

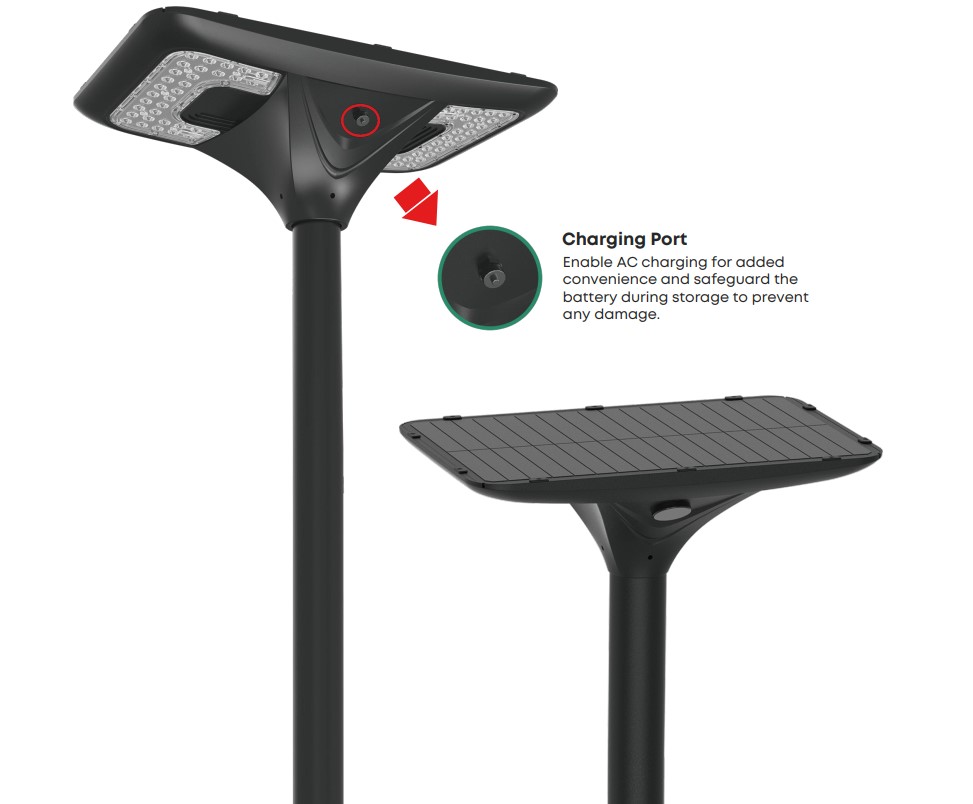

integrate with mains power; it automatically switches to the grid
supply once the battery is depleted, making it ideal for road
renovation projects. Its wide applicability encompasses roads,
residential areas, gardens, parking lots, industrial parks,
commercial zones, and other locations requiring high illumination.

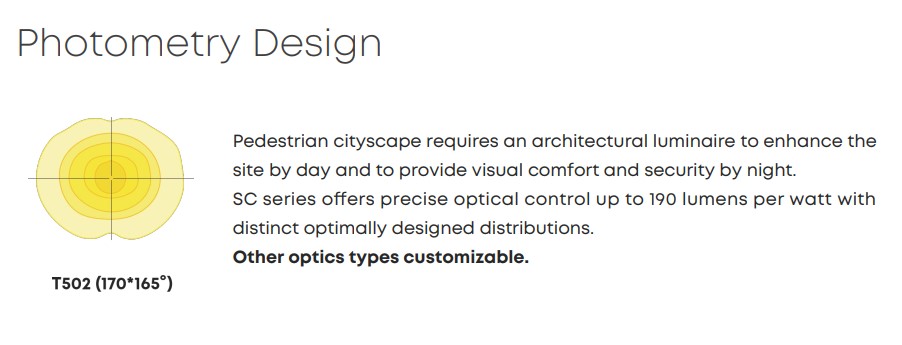

• The light engine utilizes cutting-edge energy-efficient LEDs and
specialized optics tailored for professional use.
• Featuring 5050 LED chips, our lighting solutions range from
high-level specialized lights to cost-effective luminaires of
exceptional quality. Custom LED chip options are also available.
Application Reference:
• Road & street lighting
• Residential area ligthing
• Garden, parks & perimeter lighting
• Parking lot lighting
• Industrial and commercial park lighting
• Railway & station side lighting
• Riverside & jogging track lighting
1) Moving Track MPPT maximum power tracking technology is adopted
to improve the tracking eiciency and speed by more than 20%;
2) UltraGreen power control technology with extremely low static
power consumption and sleep current;
3) 10 time-periods programmable load power/time control;
4) Multiple intelligent power modes can be selected, and the load
power can be automatically adjusted according to the battery power;
5) Multiple protection functions such as battery /PV reverse
connection protection, LED short circuit/open circuit/power limit
protection;
6) Aluminum metal housing, IP67 waterproof rating, can be used in a
variety of harsh environments
7) Extensible IoT remote communication monitoring function;
Parameter Table
| Electrical Data |
| Model | MF-SP3-P10W | MF-SP3-P20W | MF-SP3-P30W |
| Control Function | MPPT intelligent controller |
| Standard working mode | 2H: Detected-100%, None-30%; 3H: Detected-70%, None-10%; 7H:
Detected-40%, None-10% |
| Photometric Data |
| LED Model | 5050, custom on request |
| Efficacy | 190lm/w |
| Luminous Flux | 1900lm | 3800lm | 5700lm |
| Lens | Polycarbonate |
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | 70Ra |
| Mechanical Data |
| IP Rating | IP65 |
| Housing | Aluminum |
| Mounting | Round pole (Ø60mm) |
| Painting | Black, custom color on request, C5-grade painting, resistance to
extreme climates |
| Configuration Data |
| Solar Panel | 18V, 35W |
| Battery Voltage | 12.8V 6AH | 12.8V 12AH | 12.8V 18AH |
| Li-ion Battery | 76.8WH | 153.6WH | 230.4WH |
| Charging Time | 2-3Hrs | 4-5Hrs | 7-8Hrs |
| Run time | 6.9Hrs |
| Battery Lifespan | >2000 time cycle |
| Ambient & Storage | -10°C to 50°C (14°F to 122°F) / -20°C~45°C (-4°F to 113°F) |
| Maximum Autonomy | Operate 2~3 rainy days under intelligent model. |
| Others |
| SCx | Top View - 0.249m2 (2.68ft2 ); Front View- 0.045m2 (0.48ft2 ); Side View - 0.042m (0.45ft2 ) |
| Certification | FCC / CE / RoHS (The company is ISO 9001 and ISO 14001 certified.) |
| Product size | 570*370*180 mm / 22.5*14.6*7.1 inches |
| Carton Size | 645*445*230 mm / 25.4*17.5*9.1 inches |
| Net weight | 6.2kg/13.7lbs | 6.9kg/15.2lbs | 7.5kg/16.5lbs |
| Warranty | 8.3kg/18.3lbs | 9.0kg/19.8lbs | 9.6kg/21.2lbs |
| Recommend Installation Height | 3-4m | 3-6m | 5-7m |
| Application Field | Road & street, residential area, garden, parks, parking lot,
industrial and commercial parks, railway & station side, riverside
& jogging track |
| Storage Instruction | For long-term storage, it is advisable to first fully charge the
battery, then discharge it for 2 to 3 hours. This should be done
every 3 months to prevent battery damage. |
