    LED Light Solar Lamp LED Solar Street Light Garden Lighting IP66 Waterproof Outdoor 20W-120W Smart For Walkway

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF Solar Pigeon 3
    Certification : CE, RoHS,SAA
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    LED Light Solar Lamp LED Solar Street Light Garden Lighting IP66 Waterproof Outdoor 20W-120W Smart For Walkway

    LED Light Solar Lamp LED Solar Street Light Garden Lighting IP66 Waterproof Outdoor 20W-120W Smart For Walkway


    . Power range: from 20W to 120W;
    . One-sided monocrystaline solar panel, suitable for remote areas without electricity access,with optional bifacial panel.
    . Uses LiFePO4 batteries, enduring over 2000 charge/discharge cycles for safety, compact.ness, and longer lifespan.
    .Operates for 2-3 rainy days in intelligent mode. . MPPT controller offers energy-saving mode with adjustable levels, extending lighting dura.tion and auto brightness adiustment. Crafted from die-cast aluminum with anti-corrosion C5-grade coating.
    . Highly efficient 210lm/w option, outperforming standard solar lights with lower energy con-sumption.
    . Precision optics for efficient road lighting in various conditions, no light wastage, and ULOR= 0% to prevent up-light pollution.
    .The optical systems maintains an lP66 rating for durability.


    Energy-efficient
    Single lumen efficiency >210lm/W
    achieve higher illumination

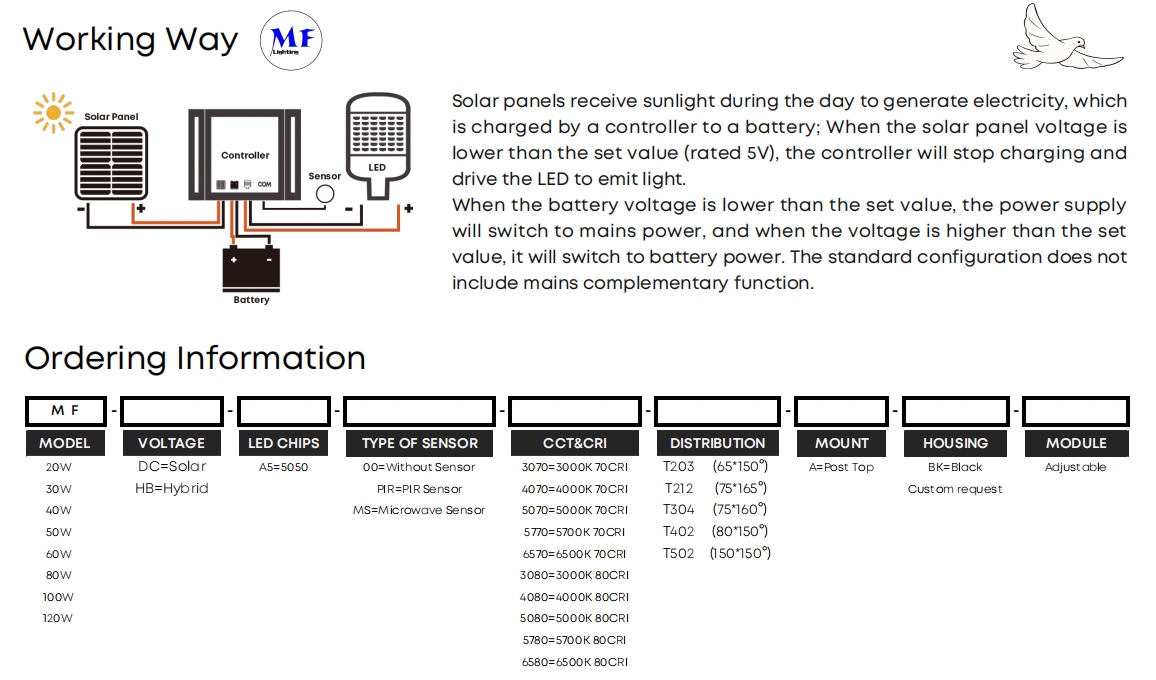

    Solar panels receive sunlight during the day to generate electricity, whichis charged by a controller to a battery; When the solar panel voltage islower than the set value (rated 5V), the controller will stop charging anddrive the LED to emit light. When the battery voltage is lower than the set value, the power supplywill switch to mains power, and when the voltage is higher than the setvalue, it will switch to battery power. The standard configuration does notinclude mains complementary function.

    Application of
    Typical IOT networking

    1.Single lamp control
    Control street light switch, brightness adjustment, current acquisition. Voltageacquisition,power calculation and power factor functions.
    2.Wireless network
    From the device to the cloud, NB-loT, GPRS, LTE and other cellular networks areused, without cabling.
    3.Fault managementThe street light can automatically report fault information, troubleshoot faultsthrough the platform, and query historical faults.
    4.Energy management
    Supports online monitoring and storage of energy consumption and configuring
    energy saving policies.
    5.Intelligent monitoring
    Supportremote monitoringand remote controlthrough Pc web and mobile APp
    6.Big data analysis
    Based on the massive data of the platform, street light fault analysis and energyconsumption analysis can be caried out to provide a basis for the maintenanceofstreet lightequipment to save energy and reduce consumption.

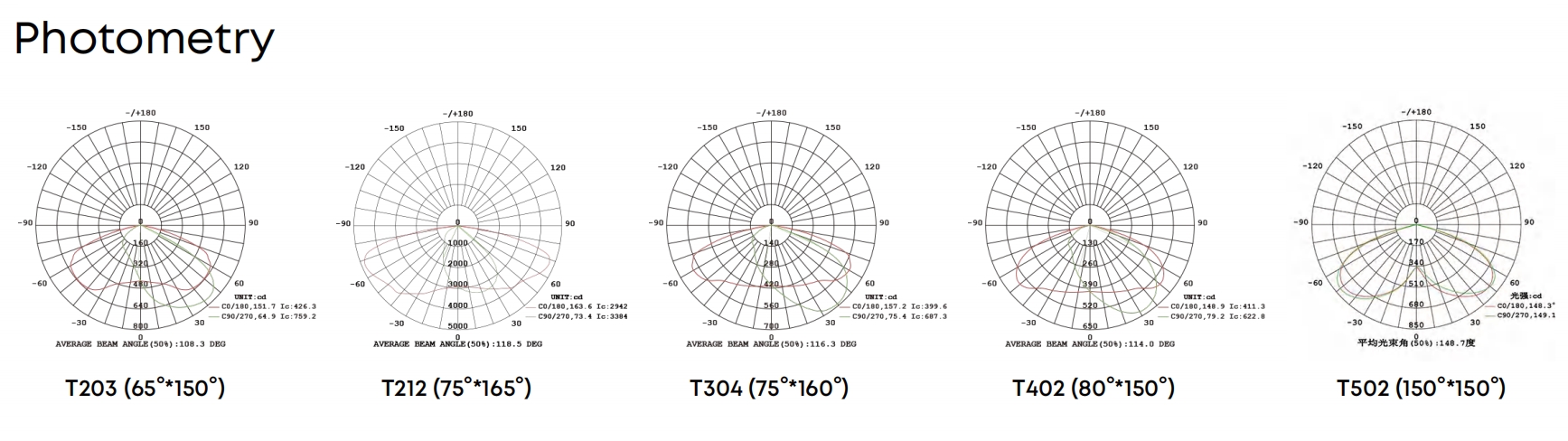

    Photometry:




    Electrical Data
    Power20W30W40W50W60W80W100W120W
    Control OptionPhotocell sensor. Timing. dimming. intelligent power saving. microwave sensor or PIR sensor.
    Grid Hybrid Power Solution(optional)DriverInventronics/Meanwell
    Work Mode2H-100%; 4H-Detected: 60%, None: 20%; 6H-Detected: 40%, None: 10%
    Photometric Data
    LED ModelOSRAM 5050, custom on request
    LensPolycarbonate
    Efficocy (im/W.Std.Dev. 5050 +5%)0CCT=5700K,CRI>70RO210lm/W210lm/W200lm/W210lm/W210lm/W200lm/W210lm/W200lm/W
    Luminous Hux(im Std Dev. 5050 =5%)@CCT=5700K, CRI>70Ra4200lm6300lm8000lm10500lm12600lm16000lm21000lm24000lm
    ULOR0% @ Luminaire inclination
    CCT3000K 4000K 5000K 5700K. 6500K
    CRI70Ra/80Ra optional
    Beam AngleT203(65*150") / T212(75*165")/ T304(75*160") / T402(80*150") / T502(150*150")
    Mechanical Data
    IP RatingIP66, according to standard EN 60529
    HousingHeavy-duty die-cast aluminum (EN AC-46100)+PA66
    Surface TreatmentAnti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
    PaintingBlack, custom color on request, C5-grade painting.
    MountingPost Top

    Configuration Data
    Photovoltaic PanelSingle side monocrystalline solar panel
    Solar Panel Voltage(W)16V 40W18V 50W18V 60W18V 70W18V 80W36V 100W36V 120W36V 150W
    Battery Voltage(AH)12.8V 12AH12.8V 18AH12.8V 24AH12.8V 30AH12.8V 36AH25.6V 24AH25.6V 30AH25.6V 36AH
    Li-ion Battery(WH)153.6WH230.4WH307.2WH384WH460.8WH614.4WH768WH921.6WH
    Charing Time4.2Hrs4.8Hrs5.0Hrs5.7Hrs6.1Hrs6.5Hrs6.8Hrs6.5Hrs
    Run Time(@full power)7.1hrs7.1hrs7.1hrs7.2hrs7.2hrs7.2Hrs7.2Hrs7.2Hrs
    Battery Lifespan>2000 times cycle
    Ambient Temperature-10°ºC to 50ºC (14°F to 122F)
    Storage Temperature-20°ºC to 45°ºC (-4°F to 113°F)
    Control SystemMPPT/PWM optional, custom lOT or remote control on request
    Maximum AutonomyOperate 2~3 rainy days under intelligent model.

    Dimension:


    Product Size750*366*106 mm/29.5*14.4*4.2 inches910*366*106mm /35.8*14.4*4.2 inches1080*366*106 mm/42.5*14.4*4.2 inches1210*366*106mm /47.6*14.4*4.2 inches1345*366*106mm/
    53.0*14.4*4.2 inches
    1060*550*110 mm/ 41.721.7*4.3 inches1145*550*110 mm/45.1*21.7*4.3 inches
    Net Weight10kg / 22.0 lbs12kg / 26.5 lbs13kg / 28.7 lbs15kg / 33.1 lbs16kg / 35.3 lbs25kg / 55.1 lbs28kg / 61.7 lbs
    Carton Size1025*440*195 mm/ 40.4*17.3*7.7 inches1025*440*195 mm/ 40.4*17.3*7.7 inches1195*440*195 mm / 47.1*17.3*7.7 inches1325*440*195 mm/ 52.2*17.3*7.7 inches1460*440*195 mm/ 57.5*17.3*7.7 inches1180*640*240mm/ 46.5*25.2*9.5 inches1265*640*240mm / 49.8*25.2*9.5 inches
    Gross Weight12kg / 26.5 lbs14kg / 30.9 lbs15kg / 33.1 lbs17kg / 37.5 lbs18kg / 39.7 lbs27kg / 59.5 lbs30kg / 66.1 lbs
    Recommend Installation Height3-5m4-7m5-7m5-7m6-8m7-9m8-10m

    Control:

    1) Moving Track MPPT maximum power tracking technology is adopted to improve the tracking eiciency and speed by more than 20%;
    2) UltraGreen power control technology with extremely low static power consumption and sleep current;
    3) 10 time-periods programmable load power/time control;
    4) Multiple intelligent power modes can be selected, and the load power can be automatically adjusted according to the battery power;
    5) Multiple protection functions such as battery /PV reverse connection protection, LED short circuit/open circuit/power limit protection;
    6) Aluminum metal housing, IP67 waterproof rating, can be used in a variety of harsh environments
    7) Extensible IoT remote communication monitoring function;



    1. Parking lot light
    2. Urban/Village Street
    3. Country Road
    4. Highways
    5. Garden/Park
    6. School/Square/Hospital
    7. Avenues
    8. Square and residential area.
    9. Any Large Outdoor Are,et

    1.Roadways and Highways: LED street lights are widely used for illuminating roadways, highways, and expressways. Their bright and uniform illumination improves visibility for drivers, reducing accidents and enhancing overall road safety.
    2.Urban and Residential Areas: LED street lights are commonly installed in urban and residential areas to provide adequate lighting for streets, sidewalks, and public spaces. They enhance security, increase pedestrian safety, and create a welcoming environment for residents and visitors. 3.Parking Lots: LED street lights are suitable for lighting large parking lots, ensuring clear visibility and improved safety for vehicles and pedestrians. Their energy efficiency and long lifespan make them a cost-effective solution for lighting extensive parking areas.
    4.Parks and Recreational Areas: LED street lights are utilized in parks, playgrounds, and recreational areas to provide illumination for night-time activities. They create a safe and inviting environment for people to enjoy outdoor spaces after dark.
    5.Industrial Zones and Warehouses: LED street lights are employed in industrial zones and warehouses to ensure sufficient lighting for operational activities, promoting productivity, and safety in these working environments.
    6.Campus Lighting: LED street lights are used to illuminate university and school campuses, providing well-lit pathways for students, staff, and visitors. They enhance security and create a comfortable environment for nighttime activities.
    7.Public Spaces and Landmarks: LED street lights can be found in public spaces such as plazas, squares, and tourist attractions. They highlight architectural features, monuments, and landmarks, enhancing their beauty and visibility during the night.
    8.Smart City Initiatives: LED street lights are an integral part of smart city initiatives. They can be integrated with smart lighting systems, allowing remote control and monitoring, dimming capabilities, and energy optimization, contributing to overall energy efficiency and sustainability.


    Packing:


    About us:


    Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

    Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

    MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
