    IP67 Waterproof LED Light Solar Street Lamp LED Street Garden Lighting Outdoor 40W-120W Microwave Sensor Smart LED

    Ask Lasest Price
    Brand Name : MF
    Model Number : MF Solar Pigeon 5
    Certification : CE, RoHS,SAA
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 5,000pcs/Month
    Delivery Time : Depends on orders
    • Product Details
    • Company Profile

    IP67 Waterproof LED Light Solar Street Lamp LED Street Garden Lighting Outdoor 40W-120W Microwave Sensor Smart LED

    IP67 Waterproof LED Light Solar Street Lamp LED Street Garden Lighting Outdoor 40W-120W Microwave Sensor Smart LED


    -Charging time: 7.1 hours to 7.2 hours (standard).
    -External power switch, optional external charging interface (requires additional configuration)
    -Built-in/external grid complementary power supply.
    -Lighting options: T203, T212 (T2M), T304, T402, T502;
    -The controller uses lP67 waterproof connectors for easy assembly and disassembly. iP65 waterproofswitch ensures minimal energy consumption during transportation.


    Energy-efficient
    Single lumen efficiency >210lm/W
    achieve higher illumination


    1.Single lamp control
    Control street light switch, brightness adjustment, current acquisition. Voltageacquisition,power calculation and power factor functions.
    2.Wireless network
    From the device to the cloud, NB-loT, GPRS, LTE and other cellular networks areused, without cabling.
    3.Fault managementThe street light can automatically report fault information, troubleshoot faultsthrough the platform, and query historical faults.
    4.Energy management
    Supports online monitoring and storage of energy consumption and configuring
    energy saving policies.
    5.Intelligent monitoring
    Supportremote monitoringand remote controlthrough Pc web and mobile APp
    6.Big data analysis
    Based on the massive data of the platform, street light fault analysis and energyconsumption analysis can be caried out to provide a basis for the maintenanceofstreet lightequipment to save energy and reduce consumption.

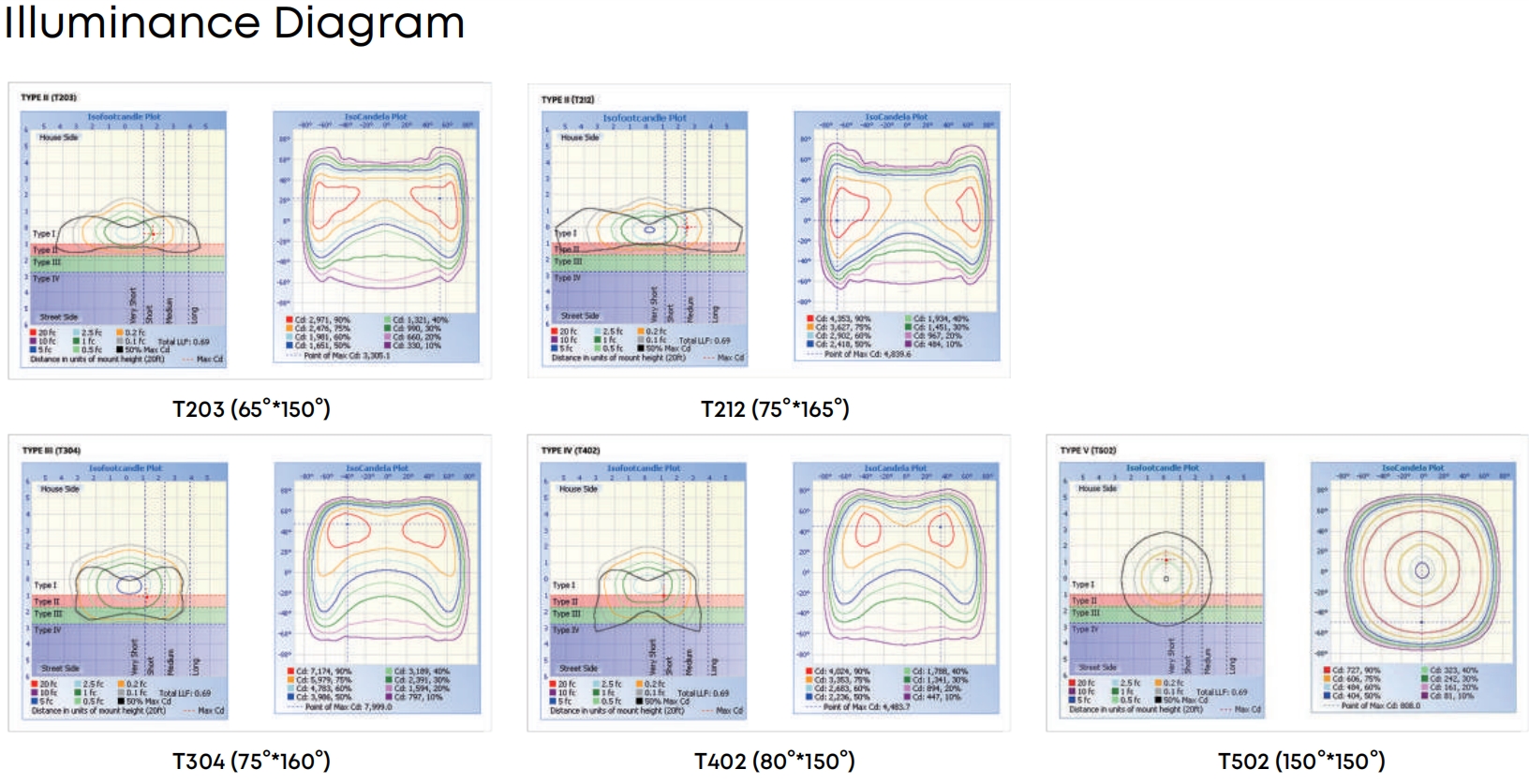

    Photometry:



    Electrical Data
    ModelMF-SP5-P30WMF-SP5-P40WMF-SP5-P50WMF-SP5-P60WMF-SP5-P80WMF-SP5-P100W
    Power30W40W50W60W80W100W
    Control OptionPhotocell sensor, Timing, dimming, intelligent power saving, microwave sensor or PIR sensor.
    Grid Hybrid Power Solution(optional) DriverInventronics/Meanwell
    Work Mode4H-Detected 100%, None 30% ;3H-Detected 70%, None 30% ;3H-Detected 50%, None 20%; 4H-Detected 30%, None 10%
    Photometric Data
    LED Model0SRAM 5050, custom on request
    LensPolycarbonate
    Efficacy (Im/W,Std. Dev. 5050 5%)@CCT=5700K, CRI>70Ra210lm/W200lm/W210lm/W210lm/W200lm/W210lm/W
    Luminous Flux (Im, Std. Dev. 5050 5%)@CCT=5700K, CRI>70Ra6300lm8000lm10500lm12600lm16000lm21000lm
    ULOR==0%. @ Luminaire inclination 0°
    CCT3000K, 4000K, 5000K, 5700K, 6500K
    CRI70Ra/80Ra optional
    ßeam AngleT203(65°*150°) / T212(75°*165) / T304(75*160°) / T402(80°*150°) / T502(150°*150°)
    Mechanical Data
    IP RatingIP65, according to standard EN 60529
    HousingAlluminum+SPCC
    Surface TreatmentAnti-UV thermosetting polyester / 80 micron epoxy primer + Anti-UV thermosetting polyester (for extremely corrosive environments).
    PaintingBlack, custom color on request, C5-grade painting.
    MountingPost Top

    Configuration Data
    Photovoltaic PanelSingle side monocrystalline solar panel
    Solar Panel Voltage(W)18V 50W18V 60W18V 70W18V 80W18V 100W
    Battery Voltage(AH)12.8V 18AH12.8V 24AH12.8V 30AH12.8V 36AH12.8V 48AH
    Li-ion Battery(WH)230.4WH307.2WH384WH460.8WH614.4WH
    Charing Time4.8Hrs5.OHrs5.7Hrs6.1Hrs6.5Hrs
    Run Time(@full power)7.1hrs7.1hrs7.2hrs7.2hrs6.9Hrs
    Battery Lifespan>2000 times cycle
    Ambient Temperature-10°C to 50°C (14°F to 122°F)
    Storage Temperature-20°C to 45°C (-4°F to 113°F)
    Control SystemMPPT/PWM optional, custom IOT or remote control on request
    Maximum AutonomyOperate 2~3 rainy days under intelligent model.


    Dimension:

    Product Size815*365*55mm 32.1*14.4*2.2 in885*365*55mm 34.8*14.4*2.2 in1055*365*55mm 41.5*144*2.2 in1170*365*55mm 461*14.4*2.2 in1055*525*55mm 41.5*20.7*2.2 in
    Carton Size1042*435*140mm 41.0*17.1*5.5 in1112*435*140mm 43.8*17.1*5.5 in1282*435*140mm 50.5*17.1*5.5 in1397*435*140mm 55.0*17.1*5.5 in1304*615*140mm 51.3*24.2*5.5 in
    Net Weight8.6 kg/19.0 lbs10.5 kg/23.1 lbs12.8 kg/28.2 lbs13.5 kg/29.8 lbs18.8 kg/414 lbs
    Gross Weight10.6 kg/23.4 lbs12.5 kg/27.6 lbs15 kg/33.1 lbs16.2 kg/35.7 lbs21.8 kg/48.1 lbs
    Recommend Installation Height4-7m5-7m5-7m6-8m7-9m

    Control:

    1) Moving Track MPPT maximum power tracking technology is adopted to improve the tracking eiciency and speed by more than 20%;
    2) UltraGreen power control technology with extremely low static power consumption and sleep current;
    3) 10 time-periods programmable load power/time control;
    4) Multiple intelligent power modes can be selected, and the load power can be automatically adjusted according to the battery power;
    5) Multiple protection functions such as battery /PV reverse connection protection, LED short circuit/open circuit/power limit protection;
    6) Aluminum metal housing, IP67 waterproof rating, can be used in a variety of harsh environments
    7) Extensible IoT remote communication monitoring function;



    1. Parking lot light
    2. Urban/Village Street
    3. Country Road
    4. Highways
    5. Garden/Park
    6. School/Square/Hospital
    7. Avenues
    8. Square and residential area.
    9. Any Large Outdoor Are,et

    1.Roadways and Highways: LED street lights are widely used for illuminating roadways, highways, and expressways. Their bright and uniform illumination improves visibility for drivers, reducing accidents and enhancing overall road safety.
    2.Urban and Residential Areas: LED street lights are commonly installed in urban and residential areas to provide adequate lighting for streets, sidewalks, and public spaces. They enhance security, increase pedestrian safety, and create a welcoming environment for residents and visitors. 3.Parking Lots: LED street lights are suitable for lighting large parking lots, ensuring clear visibility and improved safety for vehicles and pedestrians. Their energy efficiency and long lifespan make them a cost-effective solution for lighting extensive parking areas.
    4.Parks and Recreational Areas: LED street lights are utilized in parks, playgrounds, and recreational areas to provide illumination for night-time activities. They create a safe and inviting environment for people to enjoy outdoor spaces after dark.
    5.Industrial Zones and Warehouses: LED street lights are employed in industrial zones and warehouses to ensure sufficient lighting for operational activities, promoting productivity, and safety in these working environments.
    6.Campus Lighting: LED street lights are used to illuminate university and school campuses, providing well-lit pathways for students, staff, and visitors. They enhance security and create a comfortable environment for nighttime activities.
    7.Public Spaces and Landmarks: LED street lights can be found in public spaces such as plazas, squares, and tourist attractions. They highlight architectural features, monuments, and landmarks, enhancing their beauty and visibility during the night.
    8.Smart City Initiatives: LED street lights are an integral part of smart city initiatives. They can be integrated with smart lighting systems, allowing remote control and monitoring, dimming capabilities, and energy optimization, contributing to overall energy efficiency and sustainability.


    Packing:


    About us:


    Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

    Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

    MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
